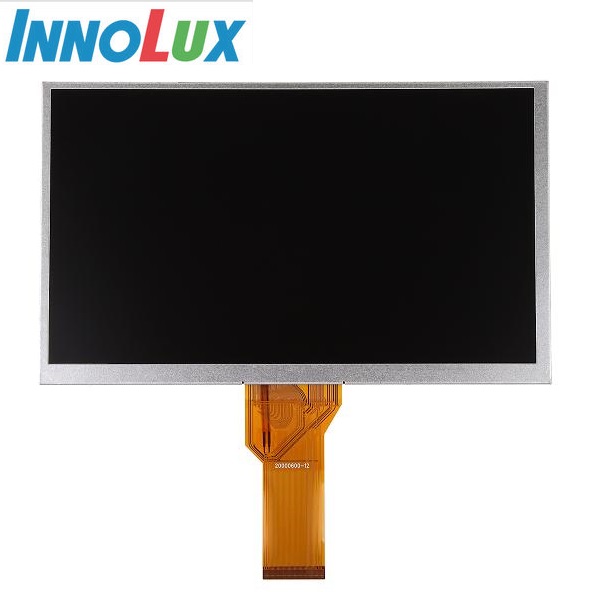

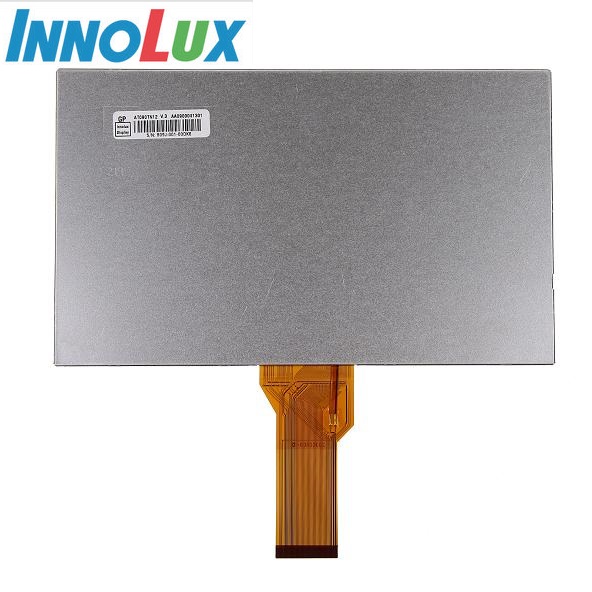

9'' 800x480 TFT LCD screen AT090TN12 V.3
A grade new original,12months warranty
Brand Name: InnoLux
Luminance(nits): 250
Contrast(%): 500
Display Mode: TN,normally white,transmissive
Viewing Angle: 50/70/70/70
Interface: 50pin FPC,parallel 24bit RGB(TTL)
Operation Temperature: -20~70℃
Outline Dimension: 211.1*126.5*5.9(mm)
Touch Screen: 4-wire resistive touch screen
MOQ:1PC
Introduction
General Description:
AT090TN12 V.3 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 9.0 inches diagonally measured active display area with WVGA (800 RGB x 480) resolution.
AT090TN12 V.3 is mainly used in digital photo frame,portable DVD player,medical facilities and some other display devices.
Packaging Form:
Payment Terms: 100% in Advance
Shipping Methods:
AT090TN12 V.3 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 9.0 inches diagonally measured active display area with WVGA (800 RGB x 480) resolution.
AT090TN12 V.3 is mainly used in digital photo frame,portable DVD player,medical facilities and some other display devices.
Matching resistive touch screen is available.
Packaging Form:
Amount per Box:0pcs
Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 10.462Kgs
Payment Terms: 100% in Advance
Shipping Methods:
