60pin TTL to LVDS converter board for 7'',8'' and 10.4'' LCD panel(LSA40AT9001)

Quick Details
D/C:
PCB with components.
Package:
PCB with components.
Model Number:
PCB800B3
Type:
Drive IC
Brand Name:
Control
Place of Origin:
Guangdong, China (Mainland)
Sizes supported:
7'',8'',9.7'',10'',10.1
Contact now

Introduction

Product Description

 1) General Description


This converter board can make 60pin/50pin TTL LCD panels connected with LVDS cable.

DF14 cable input.

Standard 3.3V, 5V power supply.

EN pin controls the single 6/8 bit signal input.

* Can be adjusted to match customer's LCD panel.


2) Connecting example

60pin TTL to LVDS converter board for 7'',8'' and 10.4'' LCD panel(LSA40AT9001)

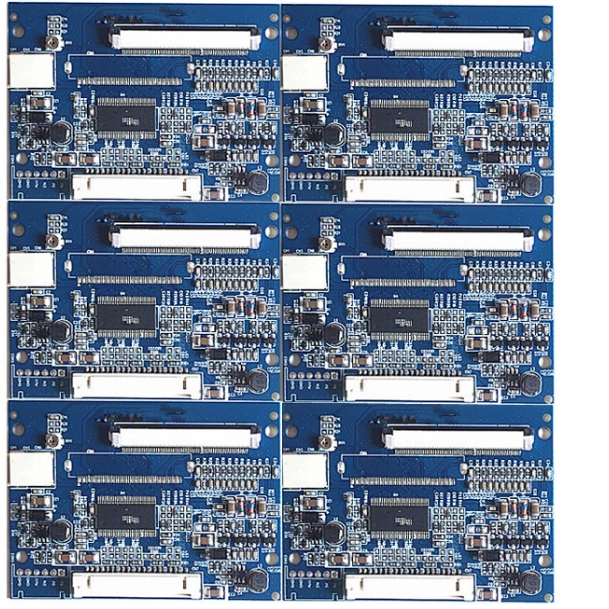

3) Picture

60pin TTL to LVDS converter board for 7'',8'' and 10.4'' LCD panel(LSA40AT9001)


Packaging & Shipping

Packed with foam and cartons.

Shipping ways:

1)Packing---Forwarder---HK Port---DHL---Tracking number

Or HK warehouse----Forwarder----DHL tracking number

Or Taiwan warehouse----Forwarder---DHL tracking number

2)Contact DHL/UPS/FedEx directly with customer's account

3)To be picked up

Our Services

We supply A grade new original InnoLux and AUO LCD panels.

Matching touch screens and driver boards are also available.

We advise our customers:

1)Please contact us for detailed specifications and check them carefully before choosing a LCD module, touch screen or driver board.

2)Please do let us know if quantity and presentation quality are OK within 1 week after signing the goods.

3)Please share information as much as possible when you meet a problem in using our products. That will do us a great favor to find a solution.

4)We are responsible for our LCD parts but joint responsibility is not included.

Company Information

Control Electronic Co.,Ltd. was founded in 2008 in Shenzhen.

Before that,the leaders had been in LCD panel industry for more than 6 years.


We mainly supply A grade new LCD panels from InnoLux and AUO.

Our engineer has 9 years' experience working in InnoLux.

Matching touch panels and driver boards are also available.


To spread our business,we had a new office in Shanghai this year.

We can trade in China mainland,HK or send goods to your destination.


Products are mainly used in industry control,security system,medical device,tablets,advertising machine and other instruments about display.

We look forward to cooperations and comments from you.
