4.0'' 480x800 TFT LCD with touch screen, MCU/RGB interface,ILI9806

Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Control
Model Number:
CT040C-2-TP
Type:
TFT
Size:
4.0''
Resolution:
480*RGB*800
Outline Dimension:
58.34*97.50*3.70 (mm)
Interface:
MCU / 3SPI+RGB
Quality grade:
A grade
Driver IC:
ILI9806
Luminance:
300 nits
Display mode:
Transmissive/Normally White
Active Area:
51.84*86.40 (mm)
Touch screen:
4W resistive
Contact now

Introduction

SupplyAbility
SupplyAbility:20000 Piece/Pieces per Month
Packaging & Delivery
Packaging DetailsAnti-static bag,carton,platePortSZLead Time :Shipped in 30 days after payment
Product Description

This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit , back-light unit. The resolution of a 4.0TFT-LCD contains 480x800 pixels, and can display up to 65K/262K/16.7M colors.


* Features
-Low Input Voltage: 3.3V(TYP)
-Display Colors of TFT LCD: 65K/262K/16.7M colors
-Interface: 8BIT/9BIT/16BIT/18BIT/24BIT MCU, 3SPI/4SPI+16BIT/18BIT/24BIT RGB

-4 wire resistive touch screen is integrated.



Photos

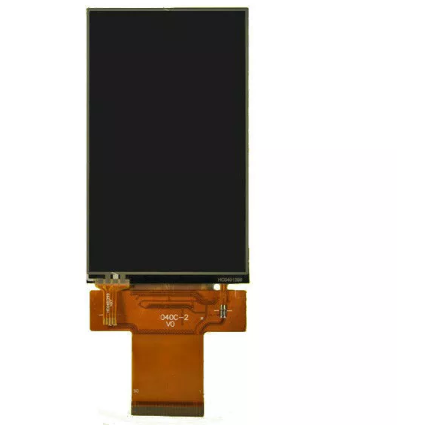

4.0'' 480x800 TFT LCD with touch screen, MCU/RGB interface,ILI98064.0'' 480x800 TFT LCD with touch screen, MCU/RGB interface,ILI9806



Packaging & Shipping

Shipping Label on the rear side of TFT-LCD display

Shipping ways:

1)Packing---Forwarder---HK Port---DHL---Tracking number

2)Contact DHL/UPS/FedEx directly with customer's account

3)To be picked up
