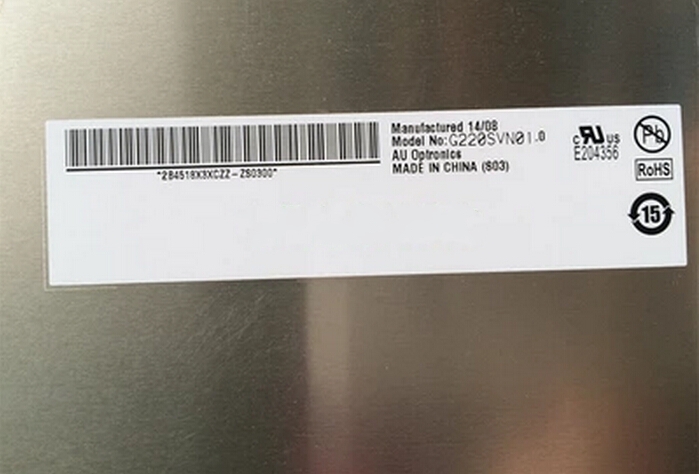

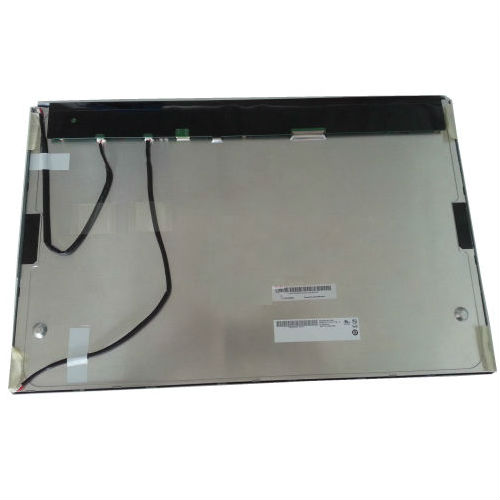

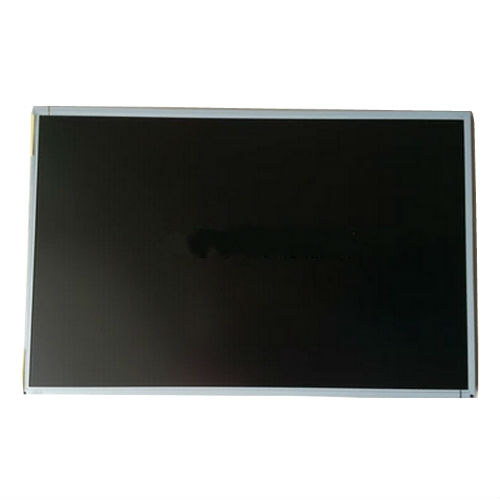

22inch 1680x1050 TFT LCD module G220SVN01.0
A grade, new, original, 12months warranty
Brand Name: AUO
Panel mode: P-MVA,normally black,transmissive
Luminance(nits): 250
Contrast(%): 2000
Backlight: LED
Viewing Angle: 89/89/89/89
Interface: LVDS 8 bit
Outline Dimension: 493.7*320.1*15.75(mm)
Surface: Anti-glare,Harding coating(3H)
Introduction
General Description:
G220SVN01.0 is a 22'' wide Color TFT LCD module. It composed of a TFT-LCD panel, a driver circuit and a backlight system. All input signals are 2-channel LVDS interface compatible.LED driver of backlight is included. G220SVN01.0 is designed for industrial display applications.
Packaging Form:
The outside dimension of carton is 585 x 284 x 429(mm).Carton and cushion weight are 2510g.7pcs per carton box.
2x4 boxes per layer.
