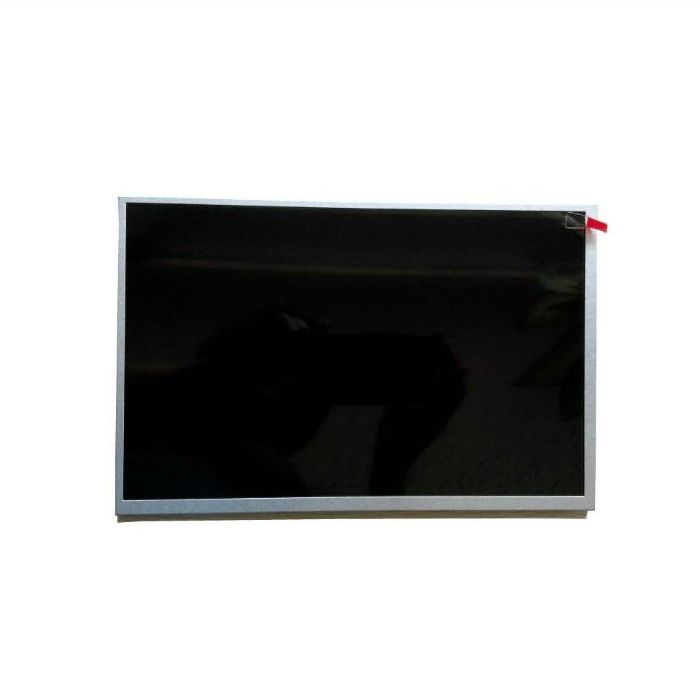

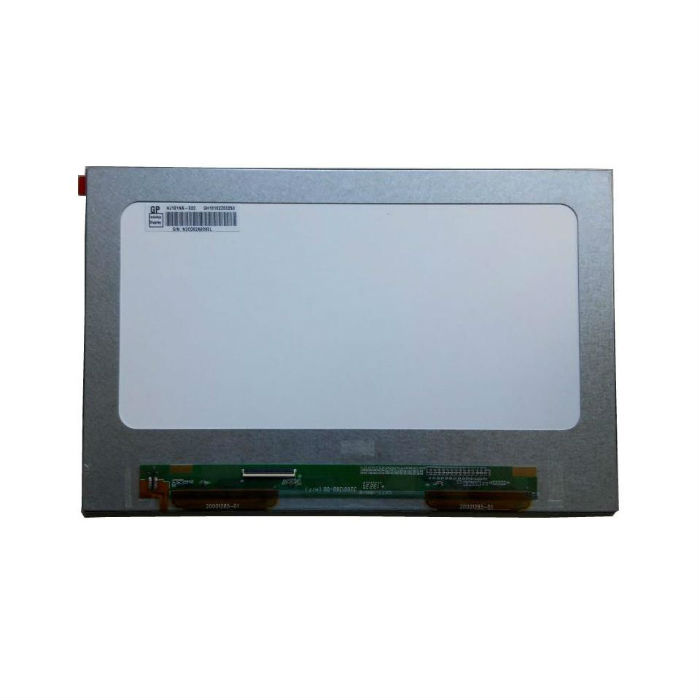

10.1'' TFT LCD module HJ101NA-02C replacement LCD screen
A grade new original,12months warranty
Resolution: 1280X3(RGB)X800
Luminance(nits): 350
Outline Dimension: 229.46*149.1*2.5(mm)
Display Mode: normally black,transmissive
Viewing Angle: 85/85/85/85
Interface: 40pin connector(LVDS)
Product type: LCM
Touch Screen:Capacitive Touch Screen Optional
MOQ:1PC
Introduction
General Description:
10.1'' 1280x800 TFT LCD module InnoLux HJ101NA-02C is discontinued.
But this LCD screen can be the replacement display because of the same pin assignments and similar dimensions.
Packaging Form:
Amount per Box:25pcs
Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 8.14Kgs
Payment Terms: 100% in Advance
Shipping Methods:
