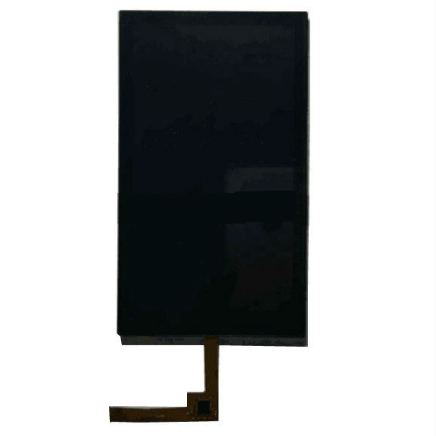

5 inch MIPI DSI interface LCD touch screen display, 720x1280
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Control
Model Number:
CT0500031BO +CTP
Type:
TFT
Size:
5.0''
Resolution:
720*RGB*1280
Outline Dimension:
73.1*126*2.29 (mm)
Interface:
33-pin connector+10-pin FPC
Quality grade:
A grade
Driver IC:
HX8394F+FT6336U
Luminance:
300 nits
Display mode:
IPS/Transmissive/Normally Black
View Area:
62.1*110.4 (mm)
Touch screen:
PCAP touch screen bo
Introduction
Product Description
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 5.0’TFT-LCD contains 720x1280 pixels, and can display up to 262K colors.
* Features
-IPS display with free viewing angle shows colorful images to you from all direction.
-12*white LEDS make it readable under sunshine/outdoor.
-Application: Mostly used in Smart Home products
-MIPI Video Mode
Photos
Packaging & Shipping
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
