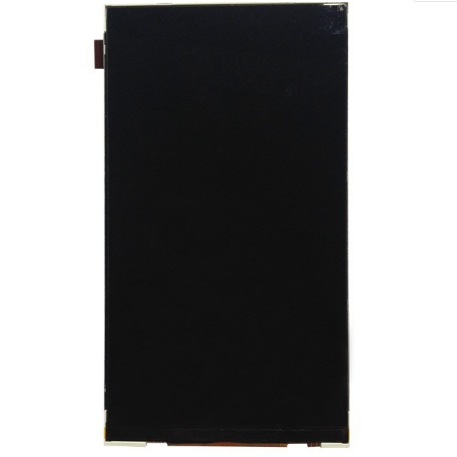

5.0'' 540x960 IPS MIPI LCD screen, 25 pin Video Mode
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Control
Model Number:
CT05006S1-17I0
Type:
TFT
Size:
5.0''
Resolution:
540*RGB*960
Outline Dimension:
66.4*120.05*1.75 (mm)
Interface:
25 pin FPC type MIPI
Quality grade:
A grade
Driver IC:
OTM9605A/ILI9807
Luminance:
300 nits
Display mode:
IPS/Transmissive/Normally Black
Active Area:
62.05*110.3 (mm)
Touch screen:
optional
Introduction
Product Description
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amorphous silicon TFT as a switching device. This model is composed of a Transmissive type TFT-LCD Panel, driver circuit,back-light unit. The resolution of a 5.0’TFT-LCD contains 540x960 pixels, and can display up to 262K colors.
* Features
-IPS display with free viewing angle shows colorful images to you from all direction.
-12*white LEDS make it readable under sunshine/outdoor.
-Application: Vehicle, instruments and so on
Photos
Packaging & Shipping
Shipping Label on the rear side of TFT-LCD display
Shipping ways:
1)Packing---Forwarder---HK Port---DHL---Tracking number
2)Contact DHL/UPS/FedEx directly with customer's account
3)To be picked up
