1.54inch OLED 128x64 I2C Display Module, 7pin PCB board
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Control
Model Number:
CT-2864KSWNG01
Usage:
Indoor & Outdoor
Tube Chip Color:
Full Color
Display Function:
Animation,Graphics,Video
Pixels:
128x64
Screen Dimension:
1.54 inch
Display Mode:
Passive Matrix
Display Color:
Monochrome (White)
Drive Duty:
1/64 Duty
Outline Dimension:
42.04 x 27.22 x 1.4 (mm)
Active Area::
35.052 * 17.516 (mm)
COF Number:
SPD0301
Interface:
7-pin I2C
Composition:
OLED screen+PCB board
Power Supply:
3.3V
Application:
Smart Watch, Medical De
Introduction
upplyAbility
SupplyAbility:20000 Piece/Pieces per Month
Packaging & Delivery
Packaging DetailsCOF
Plastic Plate
Anti-static bag
CartonPortSZLead Time :2~30 days
Plastic Plate
Anti-static bag
CartonPortSZLead Time :2~30 days
Product Description

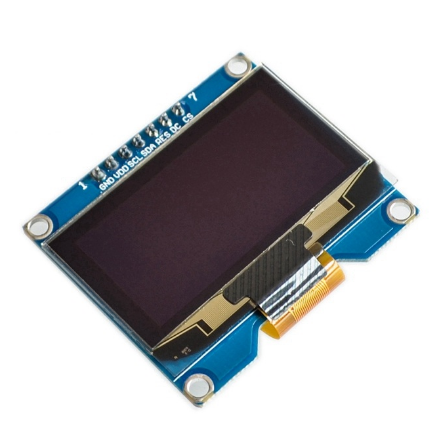

This is a 1.54'' 128x64 OLED display screen. Unlike TFT LCD, its display mode is passive matrix. So it does not need LED or any other backlight to make it bright. OLED has free viewing angle and can be used for outdoor products.
This OLED displays white content on black. PCB board can be customized.
Features:
- Integrated with SPD0301 OLED screen and PCB baseboard which converts FPC connecting to 7pin header.
- I2C interface
- Low power consumption
