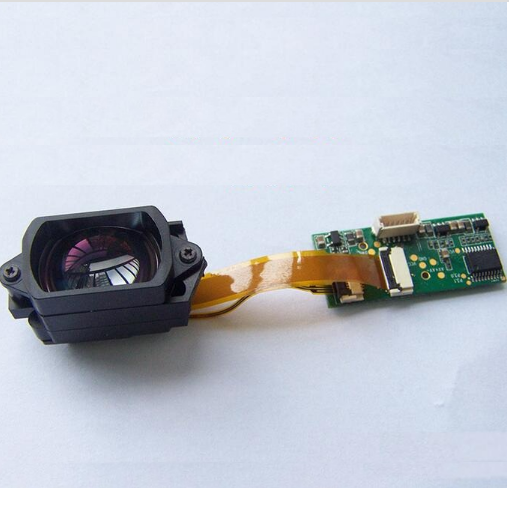

This display module is composed of a micro LCD screen and a AV controller board. It has a diagonal 0.32inch size and a 854 * 480 resolution.

It is a simple optical system without adjustments. The fixed IPD and focus setting is designed to maximise usability,yet retain the benefits of a simple product solution.

Technical Features:

(1)  The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.

(2)  Fill factor: < 50%
(3)  Color generation: color filter triads
(4)  Effective Eye Relief: 18mm. Exit Pupil: 6mm.
(5)  Pixel Drive voltage: 3-5 V
(6)  Easy Use: Plug power supply and input signals, then it will work

Application Areas:

(1) The electronic viewfinder of the digital camera / camera

(2) Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.

(3) Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.

(4) Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment

(5) Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.

(6) Minerals: coal exploration, metal mineral exploration
