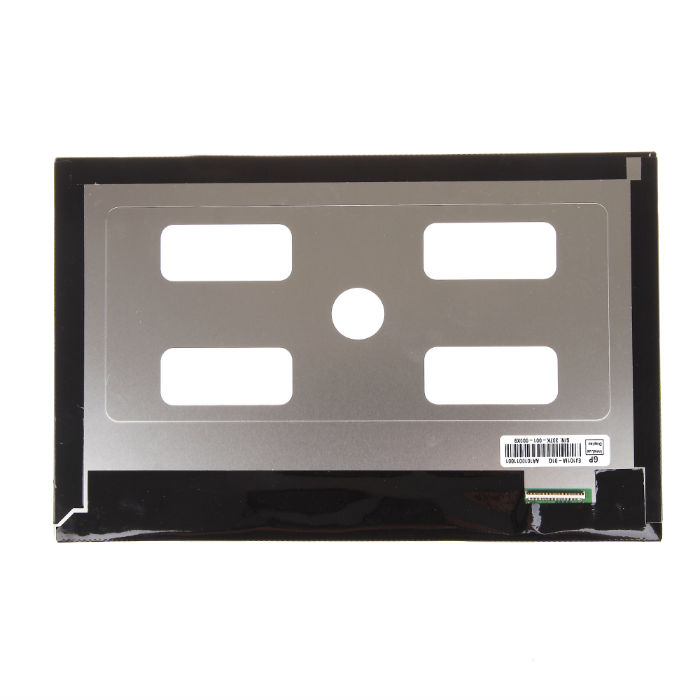

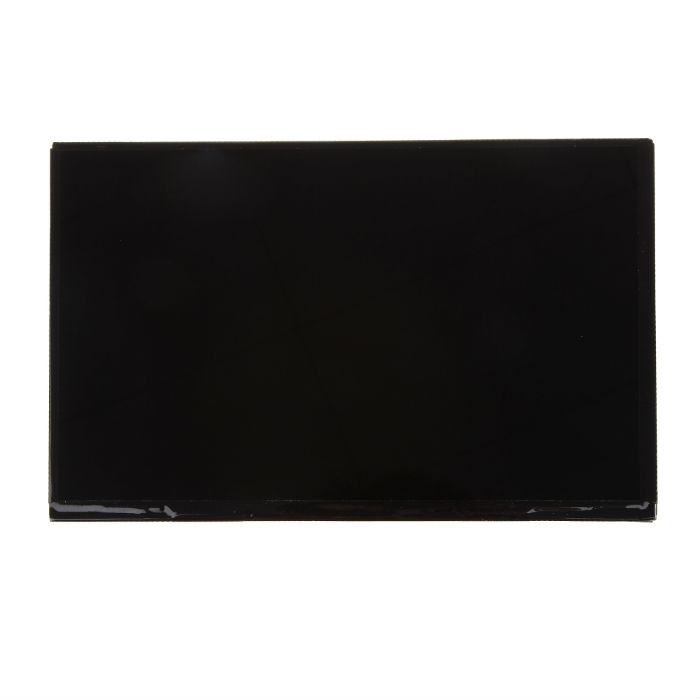

10.1'' 1280x800 IPS LCD display screen EJ101IA-01G
A grade new original,12months warranty
Brand Name: InnoLux
Luminance(nits): 350
Contrast(%): 800
Display Mode: IPS,normally black,transmissive
Viewing Angle: 85/85/85/85
Interface: 40pin connector(LVDS)
Outline Dimension: 229.46*149.1*2.5(mm)
Touch Screen: Capacitive touch screen with controller IC
MOQ:1PC
Introduction
General Description:
EJ101IA-01G is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 10.1 inches diagonally measured active display area with WXGA (1280 RGB x 800) resolution.
EJ101IA-01G is designed with IPS display technology and wide viewing angle.
Payment Terms: 100% in Advance
Shipping Methods:
EJ101IA-01G is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 10.1 inches diagonally measured active display area with WXGA (1280 RGB x 800) resolution.
EJ101IA-01G is designed with IPS display technology and wide viewing angle.
Matching capacitive touch screen is available.
Packaging Form:
Amount Per Box: 40pcs
Box Size: 530(L) x 355(W) x 255(H) (mm)
Box Gross Weight: 11.7kgs
Payment Terms: 100% in Advance
Shipping Methods:
