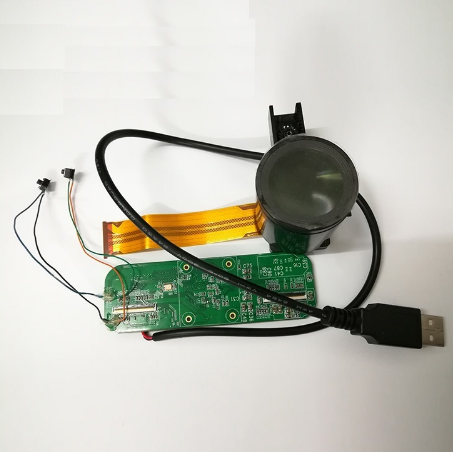

This OLED module is composed of Dual 0.71'' 1080P OLED screens+Optical Magnifying Lens+HDMI controller board+Connecting cables. Brightness can be adjusted and 2D/3D display modes can be switched.
Application: viewfinder, helmet mounted display, very small monitors etc.

Features:

-Small size display with high definition
-High contrast
-Wide range of color reproduction
-High response speed
-Thin and light
-Power saving function
-Up / down / left / right inverse display function
-Orbit supported

-Binocular & Monocular options

-Lens Cone height: 42mm
Optical picture market angle: 41.8 degrees
The distance of the pupil: 29mm
The diameter of the pupil: 6mm

-Easy Use: Plug power supply and input signals, then it will work

Application Areas:

(1) The electronic viewfinder of the digital camera / camera

(2) Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.

(3) Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.

(4) Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment

(5) Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.

(6) Minerals: coal exploration, metal mineral exploration

We mainly supply A grade new original InnoLux and AUO LCD panels.

Matching touch screens and driver boards are also available.

But now, we have more products such as touch screen LCD assembly, OLED,FLCOS and so on.
