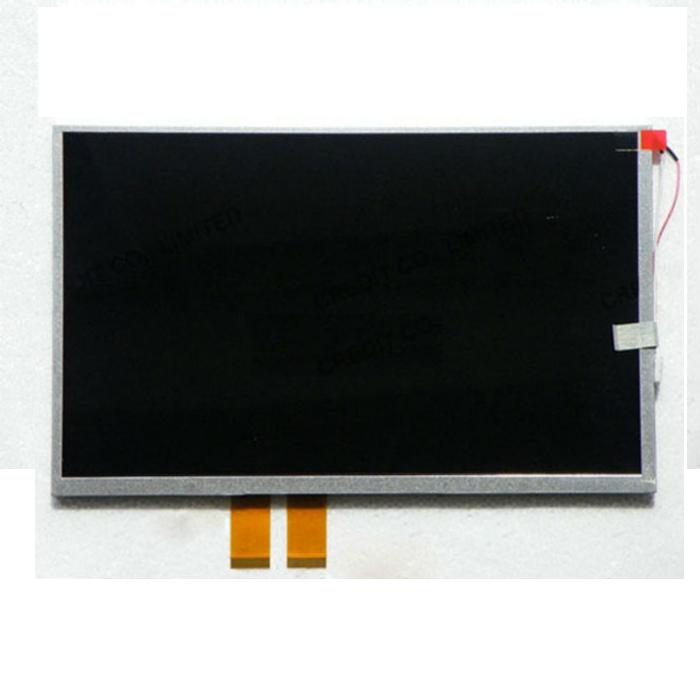

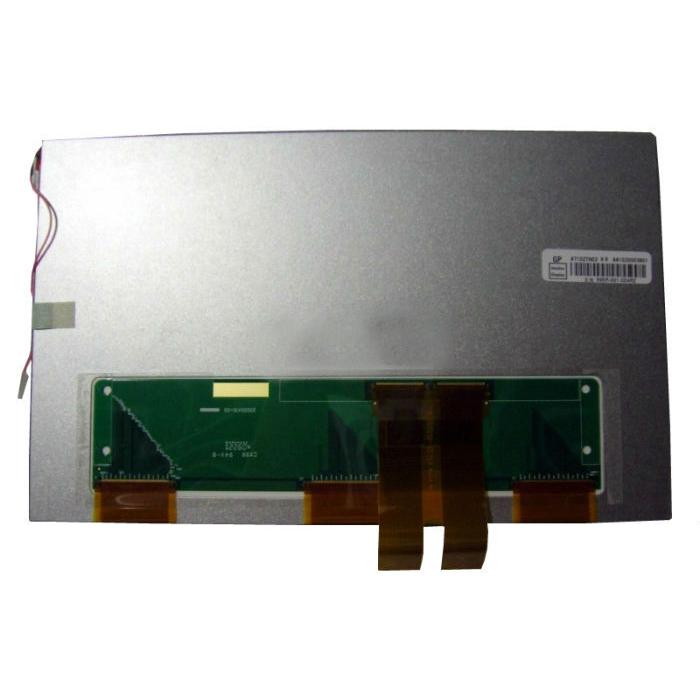

10.2'' 800x480 TFT LCD module for display AT102TN03 V9

A grade new original,1 year warranty

Brand Name: InnoLux

Luminance(nits): 250

Contrast(%): 300

Display Mode: TN,normally white,transmissive

Viewing Angle: 45/65/65/65

Interface: 60pin FPC,parallel 18bit RGB(TTL)

Operation Temperature: -30~85℃

Outline Dimension: 235.0*145.8*6.1(mm)

Touch panel: 4-wire resistive touch screen optional

MOQ:1PC

Contact now

Introduction

General Description:
AT102TN03 V.9 is a transmissive type color active matrix liquid crystal display (LCD), which uses amorphous thin film transistor(TFT) as switching devices. This panel has a 10.2 inches diagonally measured active display area with WVGA (800 RGB x 480) resolution.

AT102TN03 V.9 is mainly used in digital photo frame,portable DVD player,medical facilities and some other display devices.

Matching resistive touch screen is available.



Packaging Form:

Amount per Box:25pcs

Box Size: 530*355*255 mm(L*W*H)
Box Gross Weight: 10.839Kgs


Payment Terms: 100% in Advance
