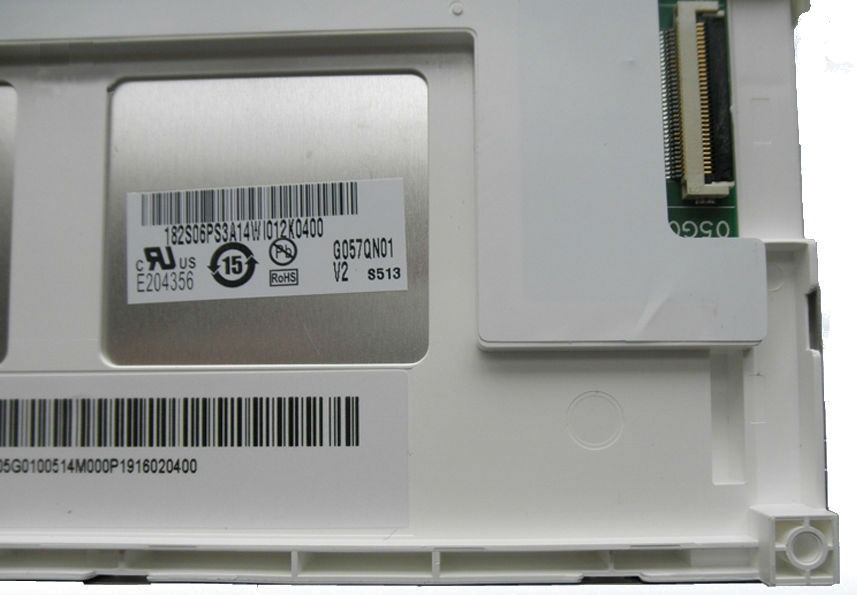

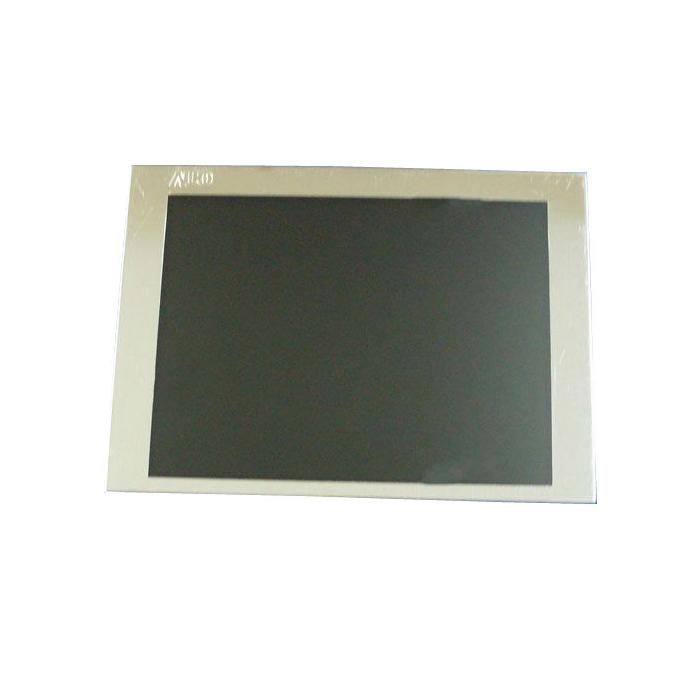

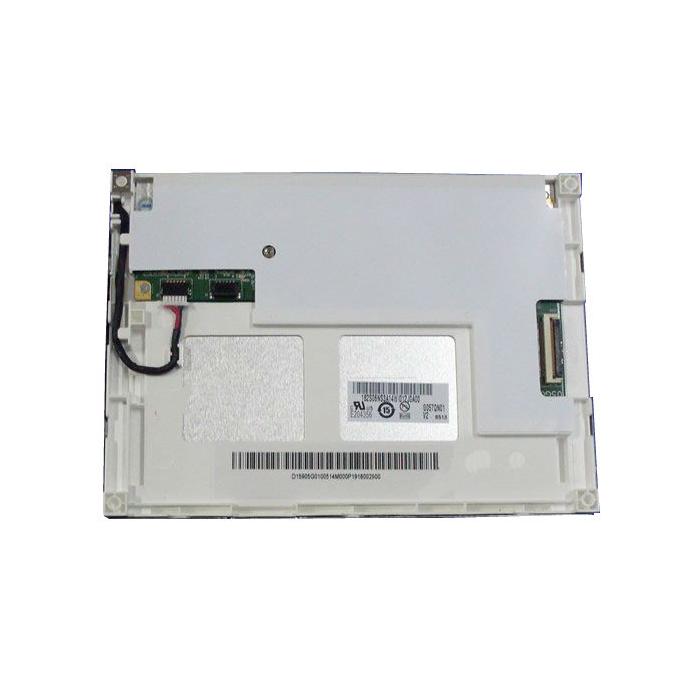

5.7'' 320x240 TFT outdoor display LCD module G057QN01 V2
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 800
Contrast(%): 800
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/70/70
Interface: Digital Parallel 6-bit(CMOS)
Operation Temperature: -30~85℃
Outline Dimension: 144*104.6*12.3(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G057QN01 V2 is designed for industrial display applications with QVGA(320xRGBx240) resolution and 262k(RGB 6bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
G057QN01 V2 is designed for industrial display applications with QVGA(320xRGBx240) resolution and 262k(RGB 6bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
G057QN01 V2 offers CMOS interface for display signal input.
Packaging Form:
Amount per Box:60pcs
Box Size:520 x 340 x 250 (L x W x H)(mm)
Box Gross Weight:12.95kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
