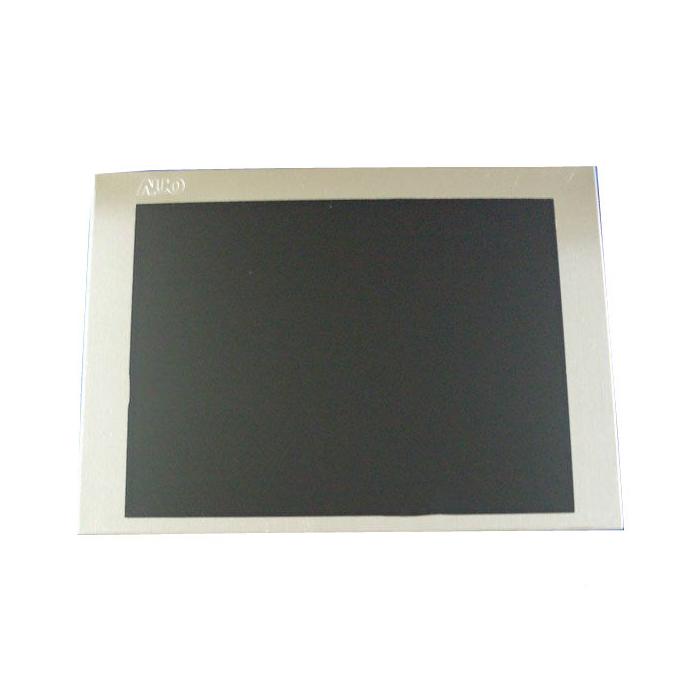

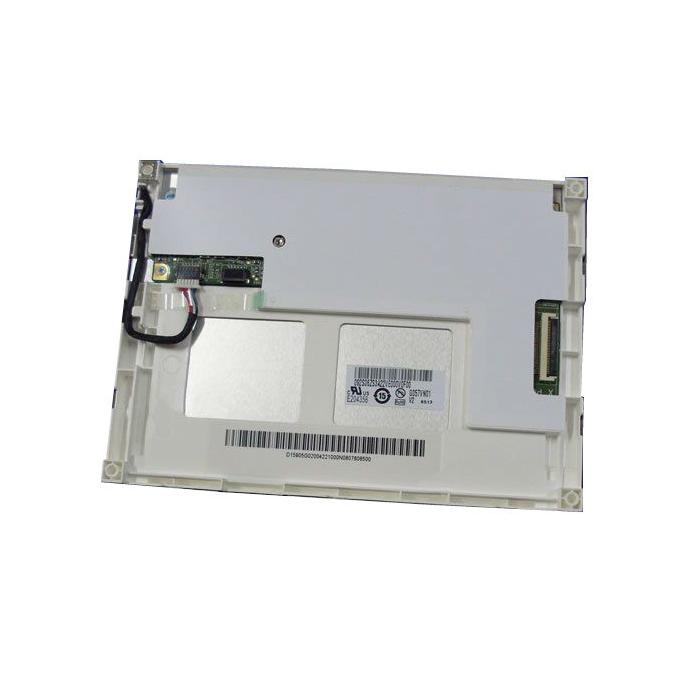

5.7'' 640x480 outdoor display TFT LCD screen G057VN01 V2

A grade, new, original, 12months warranty

Brand Name: AUO

Luminance(nits): 700

Contrast(%): 800

Display Mode: TN mode,normally white,transmissive

Viewing Angle: 80/80/70/70

Interface: Digital Parallel 6-bit(CMOS)

Operation Temperature: -30~85℃

Outline Dimension: 144*104.6*12.3(mm)

Surface: Anti-glare,Hard coating(3H)

MOQ:1PC

Contact now

Introduction

General Description:
G057VN01 V2 is designed for industrial display applications with VGA(640xRGBx480) resolution and 262k(RGB 6bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
G057VN01 V2 offers CMOS interface for display signal input.

Packaging Form:

Amount per Box:60 pcs
Box Size: 520*340*250 mm(L*W*H)
Box Gross Weight: 12.95 Kgs


Payment Terms: 100% in Advance
