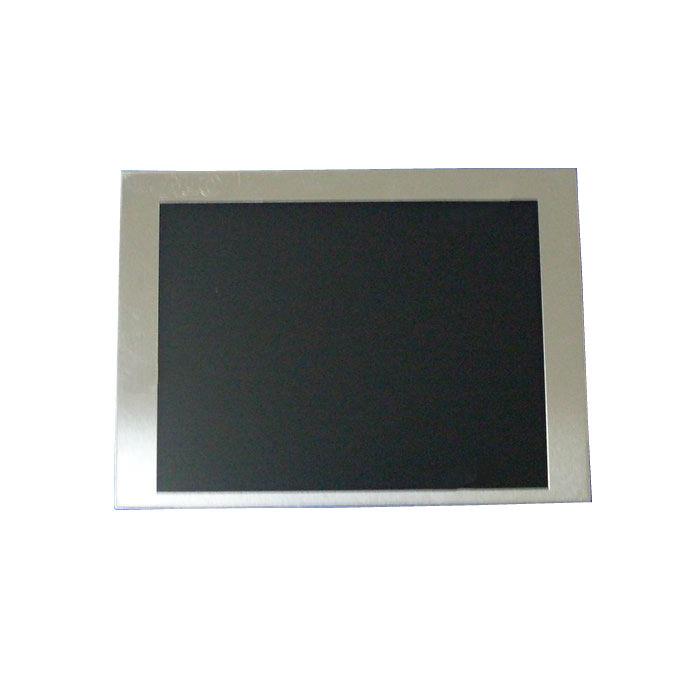

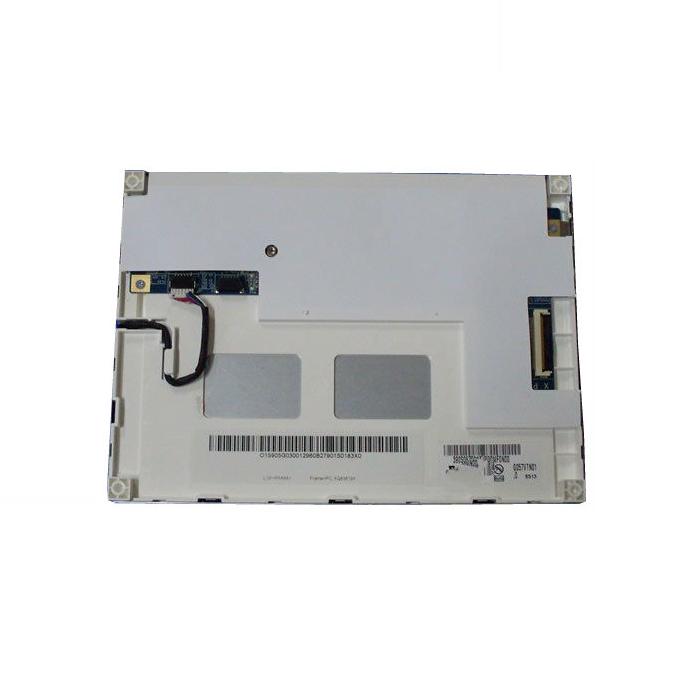

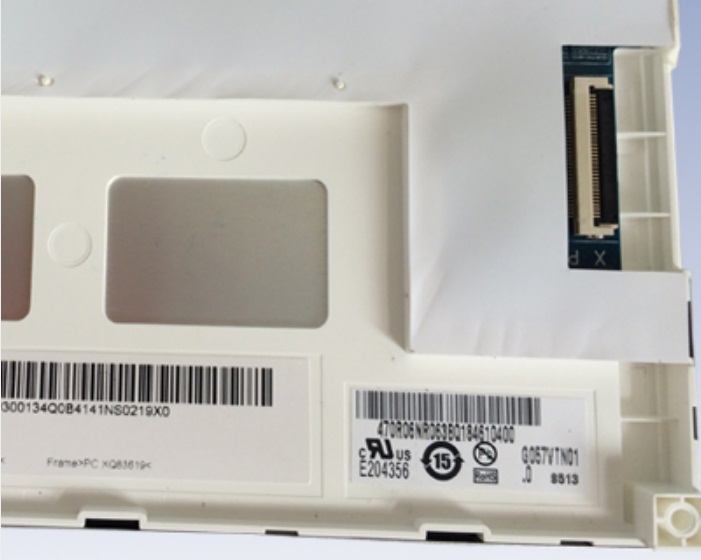

5.7'' 640x480 TFT LCD panel G057VTN01.0 for display
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 530
Contrast(%): 800
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/70/70
Interface: Digital Parallel 6-bit(CMOS)
Operation Temperature: -30~85℃
Outline Dimension: 144*104.6*12.3(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G057VTN01.0 is designed for industrial display applications with VGA(640xRGBx480) resolution and 262k(RGB 6bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
G057VTN01.0 offers CMOS interface for display signal input.
G057VTN01.0 is designed for industrial display applications with VGA(640xRGBx480) resolution and 262k(RGB 6bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
G057VTN01.0 offers CMOS interface for display signal input.
Packaging Form:
Amount per Box:60 pcs
Box Size: 520*340*250 mm(L*W*H)
Box Gross Weight: 12.95 Kgs
Payment Terms: 100% in Advance
