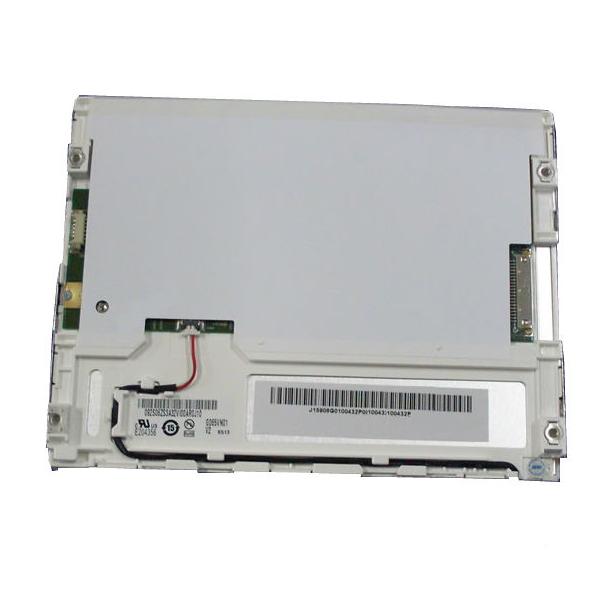

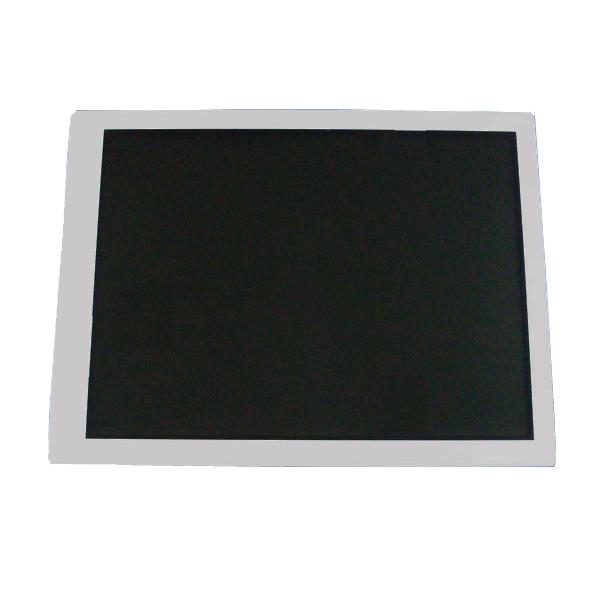

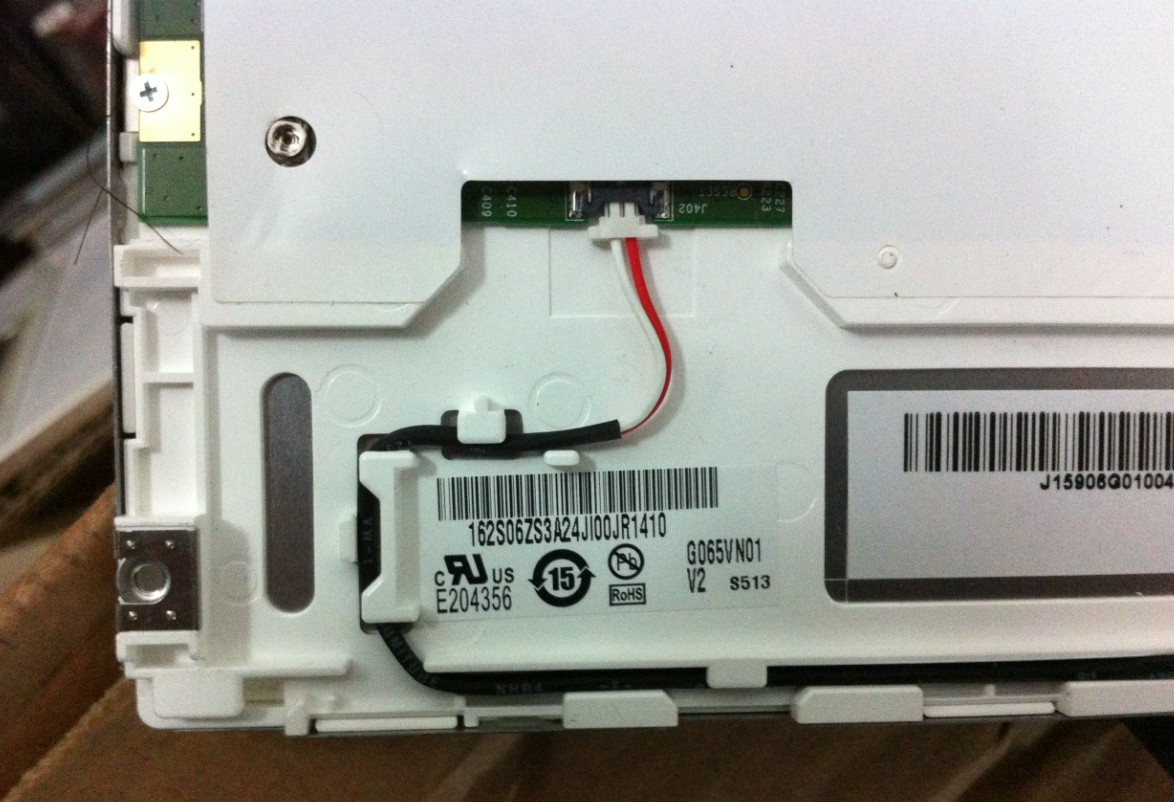

6.5'' 640x480 outdoor display TFT LCD screen G065VN01 V2
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 800
Contrast(%): 600
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/70/70
Interface: LVDS 6/8 bit
Operation Temperature: -30~80℃
Outline Dimension: 153*118*10.9(mm)
Surface: Glare,Hard coating(3H),Anti-reflection
MOQ:1PC
Introduction
General Description:
G065VN01 V2 is designed for industrial display applications with VGA(640xRGBx480) resolution and 16.2M(RGB 6-bit+FRC) or 262k(RGB 6bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
Packaging Form:
G065VN01 V2 is designed for industrial display applications with VGA(640xRGBx480) resolution and 16.2M(RGB 6-bit+FRC) or 262k(RGB 6bit) colors. It is composed of a TFT-LCD panel,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
G065VN01 V2 offers LVDS interface for display signal input.
Packaging Form:
Amount per Box:80pcs
Box Size: 425*386*430 mm(L*W*H)
Box Gross Weight: 16.6kgs
Payment Terms: 100% in Advance
