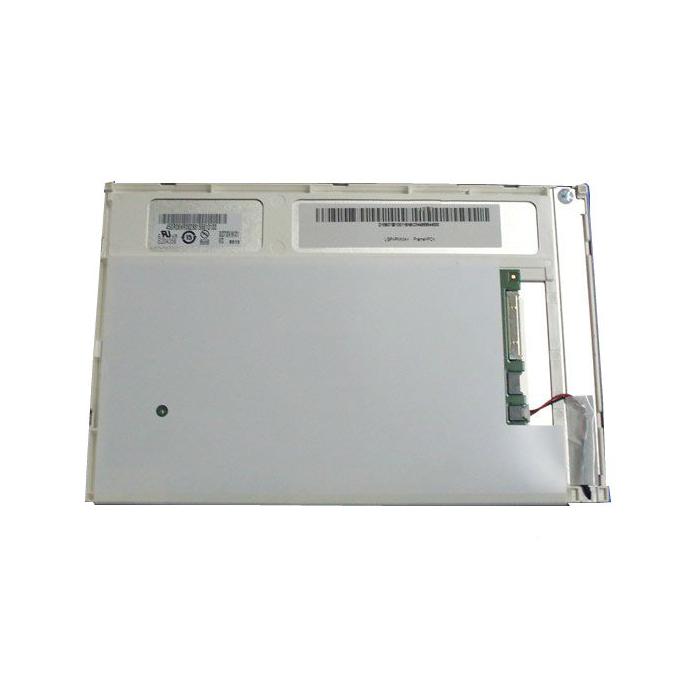

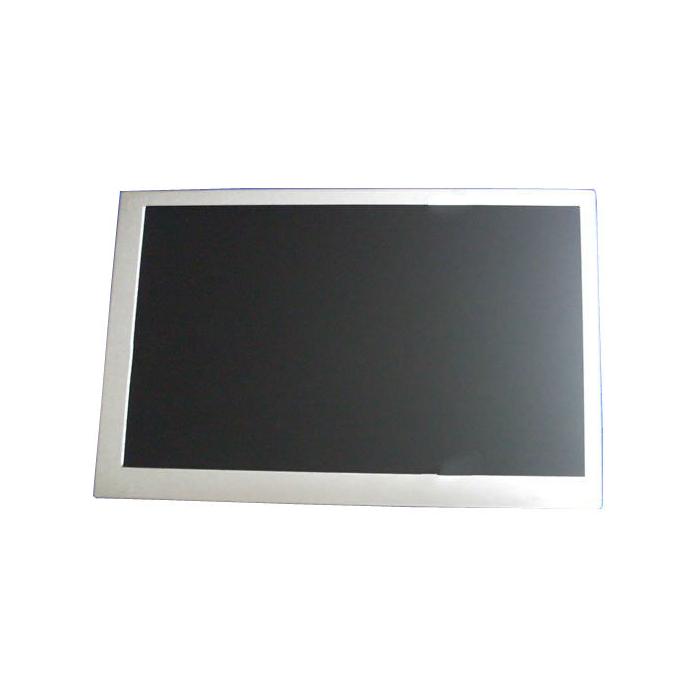

7'' 800x480TFT LVDS interface LCD screen G070VW01 V0
A grade, new, original, 12months warranty
Brand Name: AUO
Outline Dimension: 170.0*111.0*7.5 (mm)
LCD Drive Voltage: 3.3V
Viewing Angle: 80/80/80/80
Touch Panel: Resistive/Capacitive Touch screen optional
Driver Board: AV+VGA+HDMI+DVI inputs
Luminance: 400nits
Display Mode: TN mode,normally white,transmissive
Operating Temperature: -30~+85
MOQ:1PC
Introduction
General Description:
G070VW01 V0 is a 7.0 inch color TFT LCD module with TN technology.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
G070VW01 V0 is built in time controller and LVDS interface.
This module is designed with wide viewing angle,wide operating temperature and longlife LEDs backlight which is well suited to be the display units for Industrial Applications. LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits).
G070VW01 V0 is a RoHS product.
Packaging Form:
G070VW01 V0 is a 7.0 inch color TFT LCD module with TN technology.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
G070VW01 V0 is built in time controller and LVDS interface.
This module is designed with wide viewing angle,wide operating temperature and longlife LEDs backlight which is well suited to be the display units for Industrial Applications. LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits).
G070VW01 V0 is a RoHS product.
Packaging Form:
Amount per Box:60 pcs
Box Size: 434*377*264 mm(L*W*H)
Box Gross Weight: 14.4 Kgs
