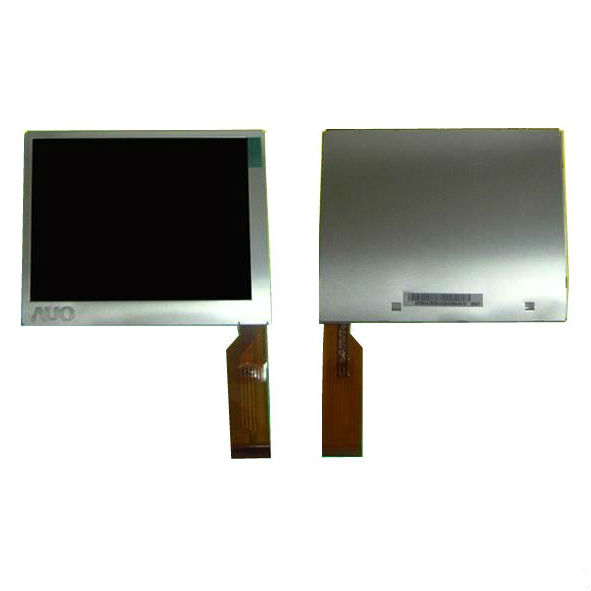

4.0inch 480x234 analog TFT LCD module A040CN01 V3

A grade new original,12months warranty

Brand Name: AUO

diagonal Resolution: 480 x 234 (WQVGA)

Luminance(nits): 300

Display Mode: TN,normally white,transmissive

Viewing Angle: 45/45/10/30

Interface: TFT Specific Analog RGB

Operation Temperature: 0~60℃

Outline Dimension: 95.35*77.00*3.50(mm)

Backlight: LED

Contact now


General Description:

A040CN01 V3 is a 4.0 inch color TFT LCD display. The screen format is intended to support WQVGA(480xRGBx234) resolution and full color. It is composed of a TFT-LCD panel,driver ICs and backlight unit.  A040CN01 V3 offers analog interface for display signal input.

Packaging Form:

Amount Per Box:150pcs
Box Size: 520(L) x 340(W) x 250(H) (mm)
Box Gross Weight: 9±1 kgs
