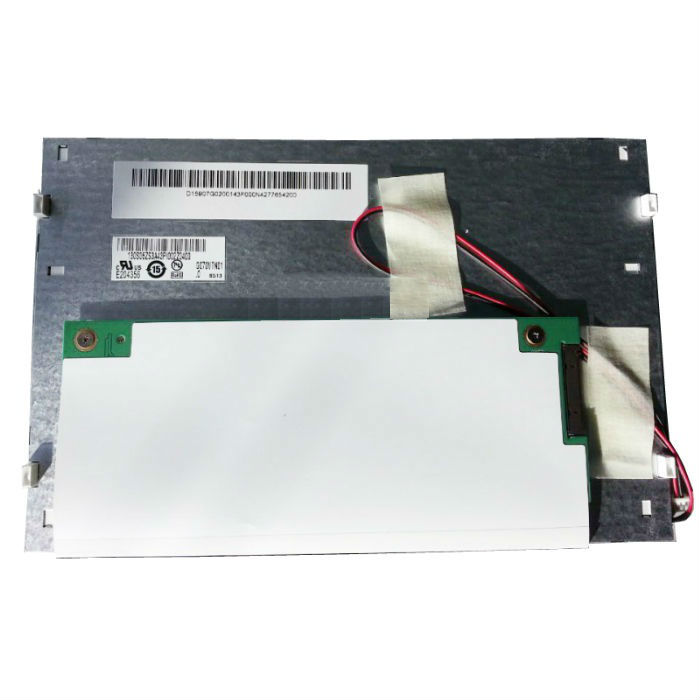

7'' 800x480 LCD screen G070VTN01.0 for general display
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 300
Contrast(%): 500
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 65/65/50/60
Interface: LVDS 6/8 bit
Operation Temperature: -20~70℃
Outline Dimension: 170*111*8(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G070VTN01.0 is a 7.0 inch color TFT LCD with TN technology module.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
This module is designed for display units for Industrial Applications.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits) by LVDS interface.
Packaging Form:
G070VTN01.0 is a 7.0 inch color TFT LCD with TN technology module.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
This module is designed for display units for Industrial Applications.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits) by LVDS interface.
Packaging Form:
Amount per Box:60 pcs
Box Size: 434*377*264 mm(L*W*H)
Box Gross Weight: 14.4 Kgs
Payment Terms: 100% in Advance
