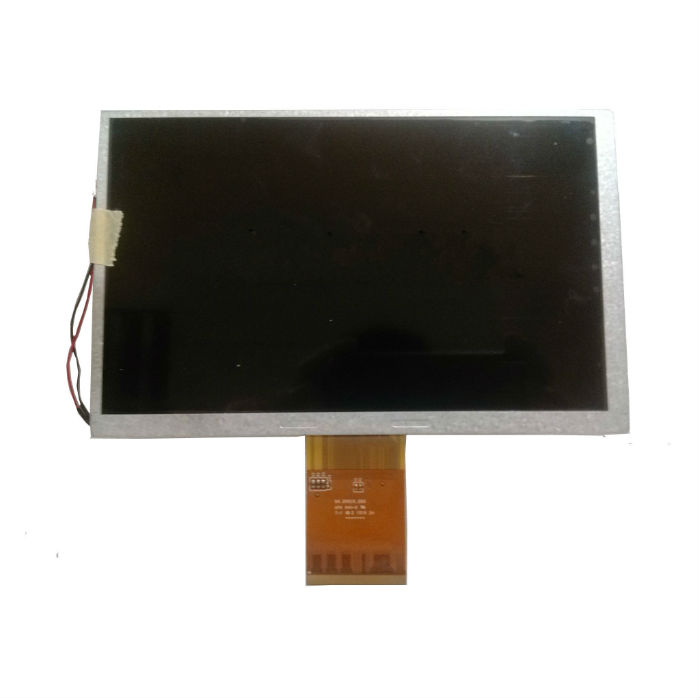

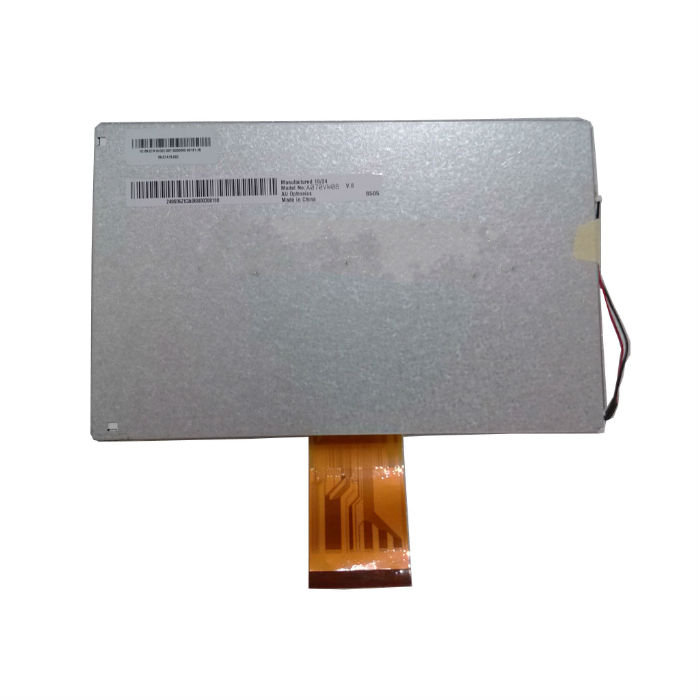

7'' 800x480 digital photo frame LCD display A070VW08 V2
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 500
Contrast(%): 500
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 65/65/50/60
Interface: Digital Parallel 8-bit(TTL+SPI)
Operation Temperature: -20~70℃
Outline Dimension: 165*104*5.1(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
A070VW08 V2 is a 7.0 inch color TFT LCD module with TN technology.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
A070VW08 V2 is a RoHS product designed for car after-market,digital photo frame and other suitable display applications.
Packaging Form:
A070VW08 V2 is a 7.0 inch color TFT LCD module with TN technology.It is composed of a TFT-LCD panel,driver ICs,PCB with power supply circuit and backlight unit.
A070VW08 V2 is a RoHS product designed for car after-market,digital photo frame and other suitable display applications.
Packaging Form:
Amount per Box:40 pcs
Box Size: 520*340*250 (mm) (L*W*H)
Box Gross Weight: 14.4 Kgs
Payment Terms: 100% in Advance
