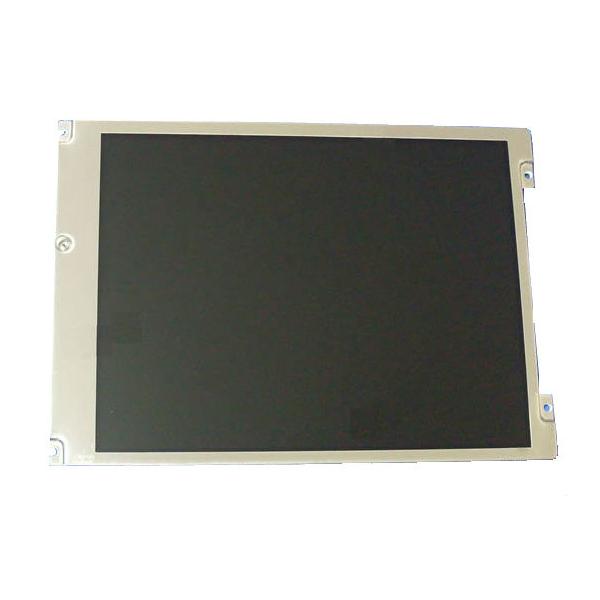

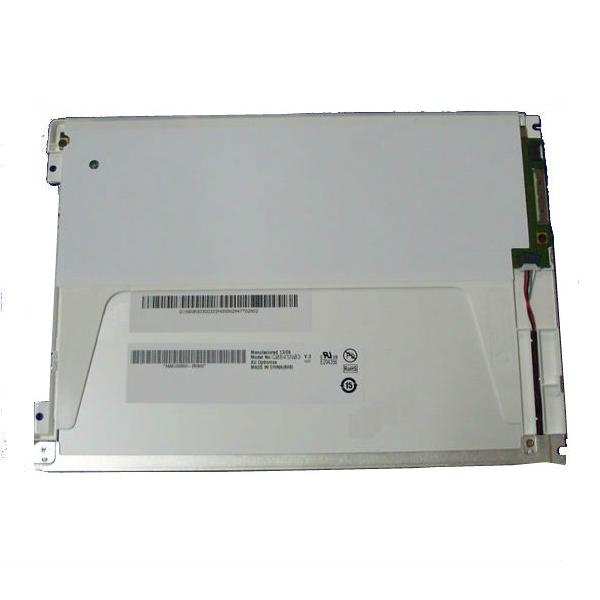

8.4'' 800x600 general display LCD screen G084SN03 V3
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 250
Contrast(%): 600
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/80/60
Interface: LVDS 6/8 bit
Operation Temperature: -20~70℃
Outline Dimension: 203*142.5*5.7(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G084SN03 V3 is a 8.4 inch color TFT LCD module .
This module is designed for display units for Industrial Applications.
The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits).
All input signals are LVDS interface compatible.
LED driver is embedded.
Packaging Form:
G084SN03 V3 is a 8.4 inch color TFT LCD module .
This module is designed for display units for Industrial Applications.
The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits).
All input signals are LVDS interface compatible.
LED driver is embedded.
G084SN03 V3 is a RoHS product.
Packaging Form:
Amount per Box:30 pcs
Box Size: 600*353*210 mm(L*W*H)
Box Gross Weight: 12 Kgs
Payment Terms: 100% in Advance
