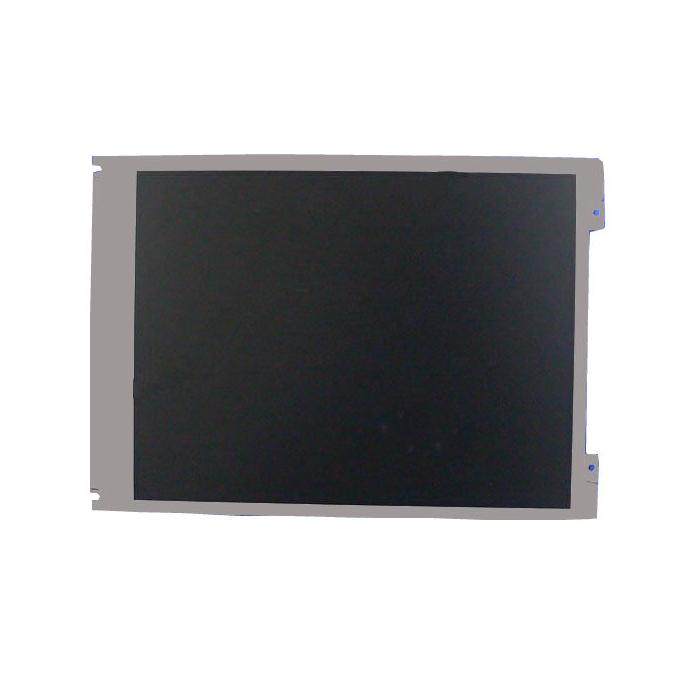

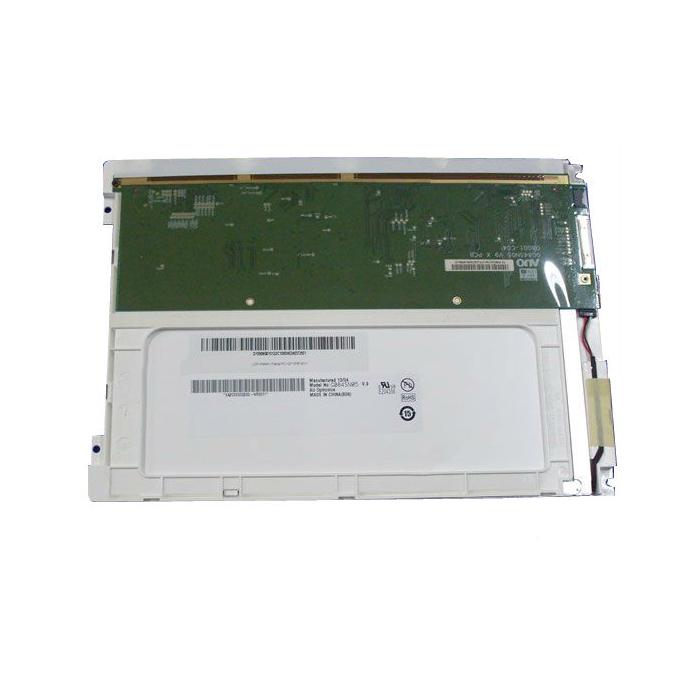

8.4'' 800x600 LCD display G084SN05 V9 with LED backlight
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 450
Contrast(%): 600
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/80/60
Interface: LVDS 6/8 bit
Operation Temperature: -30~85℃
Outline Dimension: 203*142.5*8(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G084SN05 V9 is a 8.4 inch color TFT LCD module .
G084SN05 V9 is designed with wide viewing angle,wide operating temperature and long life LEDs backlight which is well suited to be the display units for Industrial Applications.
LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable.
G084SN05 V9 is built in timing controller and LVDS interface.
The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits).
Packaging Form:
G084SN05 V9 is a 8.4 inch color TFT LCD module .
G084SN05 V9 is designed with wide viewing angle,wide operating temperature and long life LEDs backlight which is well suited to be the display units for Industrial Applications.
LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable.
G084SN05 V9 is built in timing controller and LVDS interface.
The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits).
G084SN05 V9 is a RoHS product.
Packaging Form:
Amount per Box: 30pcs
Box Size: 405*328*201 mm(L*W*H)
Box Gross Weight: 9.5kgs
Payment Terms: 100% in Advance
