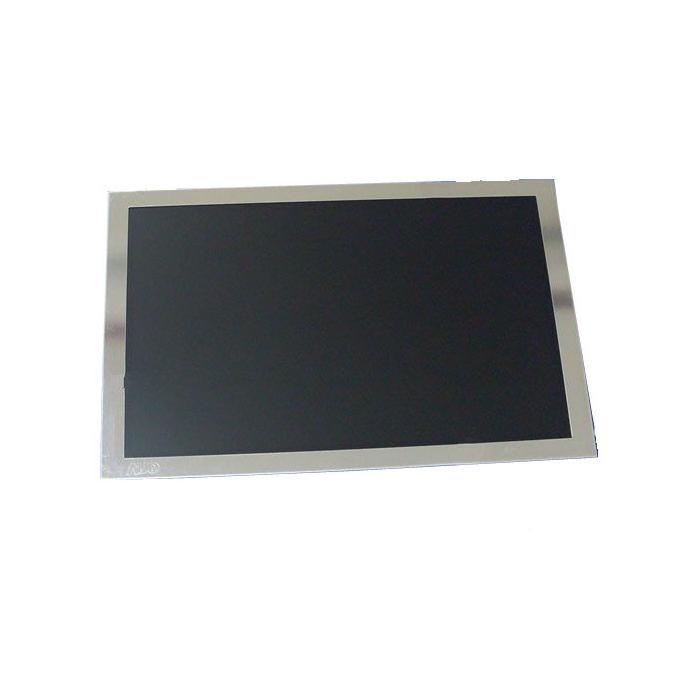

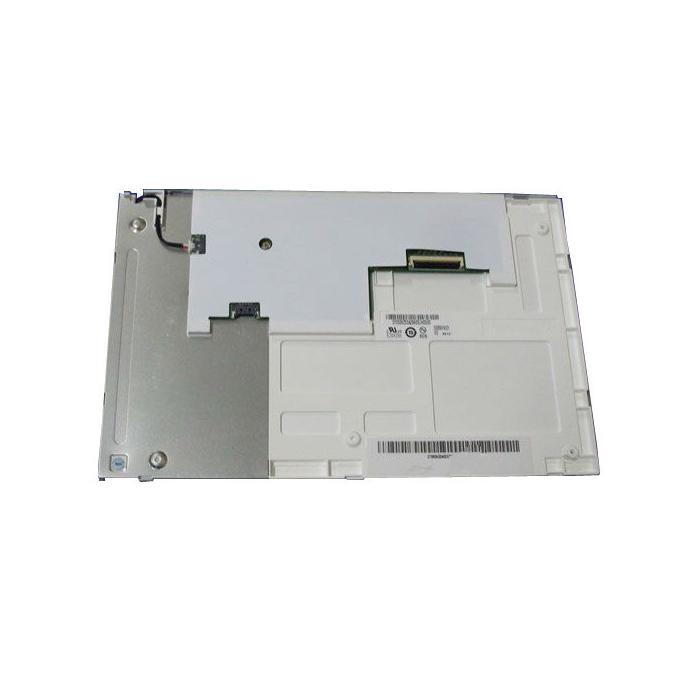

8.5'' 800x480 LCD screen G085VW01 V0,PCB board optional
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance: 300 nits
Outline Dimension: 210*134*10 (mm)
Active Area: 184.8*110.88 (mm)
Logic/LCD Drive Voltage: 3.3 V
Operating Temperature: -30~+85
Viewing angle: 80/80/80/60
PCB control board: AV,VGA,HDMI,DVI
Display mode: TN mode,normally white,transmissive
MOQ:1PC
Introduction
General Description:
G085VW01 V0 is a 8.5'' TFT LCD module designed with wide viewing angle,wide operating temperature and long-life LED backlight. So that it is well suited to be the display units for industrial applications.The screen format is intended to support 262k(RGB 6-bits) colors.
LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable.
Packaging Form:
G085VW01 V0 is a 8.5'' TFT LCD module designed with wide viewing angle,wide operating temperature and long-life LED backlight. So that it is well suited to be the display units for industrial applications.The screen format is intended to support 262k(RGB 6-bits) colors.
LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable.
G085VW01 V0 is a RoHS product.
Packaging Form:
Amount per Box: 30pcs
Box Size: 520*340*250 mm(L*W*H)
Box Gross Weight: 12kgs
Payment Terms: 100% in Advance
