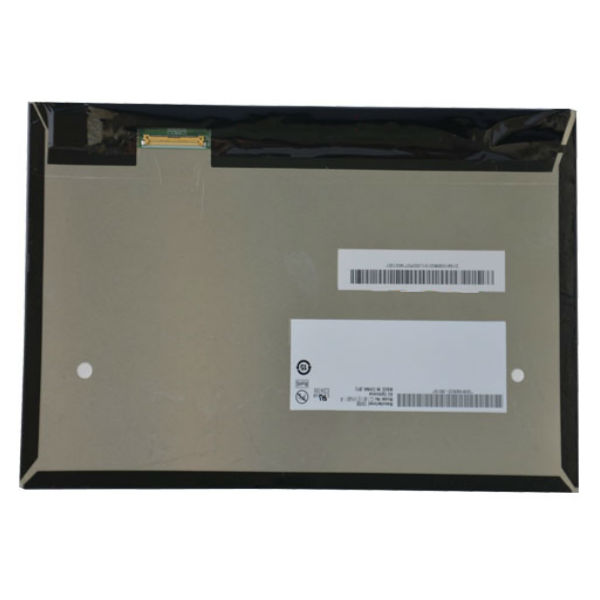

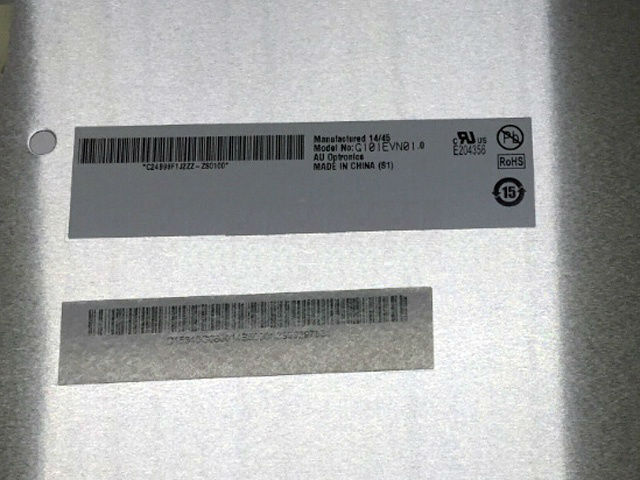

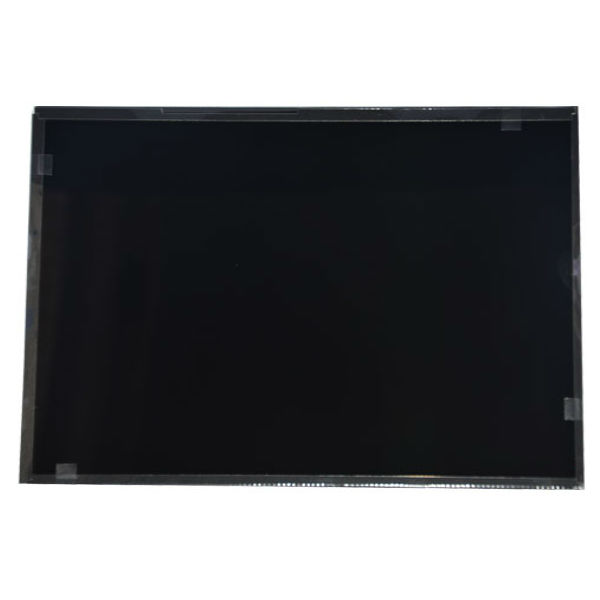

10.1'' 1280x800 display LCD screen G101EVN01.0
A grade new original,12months warranty
Brand Name: AUO
Luminance(nits): 300
Contrast(%): 1300
Display Mode: MVA mode,normally black,transmissive
Viewing Angle: 85/85/85/85
Interface: LVDS 6 bit
Operation Temperature: -20~60℃
Outline Dimension: 229.46*149.2*4.96(mm)
Surface: Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G101EVN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:10 WXGA, 1280(H) x800(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible.
Payment Terms: 100% in Advance
Shipping Methods:
G101EVN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:10 WXGA, 1280(H) x800(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible.
G101EVN01.0 is designed for a display unit of notebook style personal computer and industrial machine.
Packaging Form:
Amount Per Box: 40pcs
Box Size:484(L) x 328(W) x 257(H) (mm)
Box Gross Weight:9.2kgs
