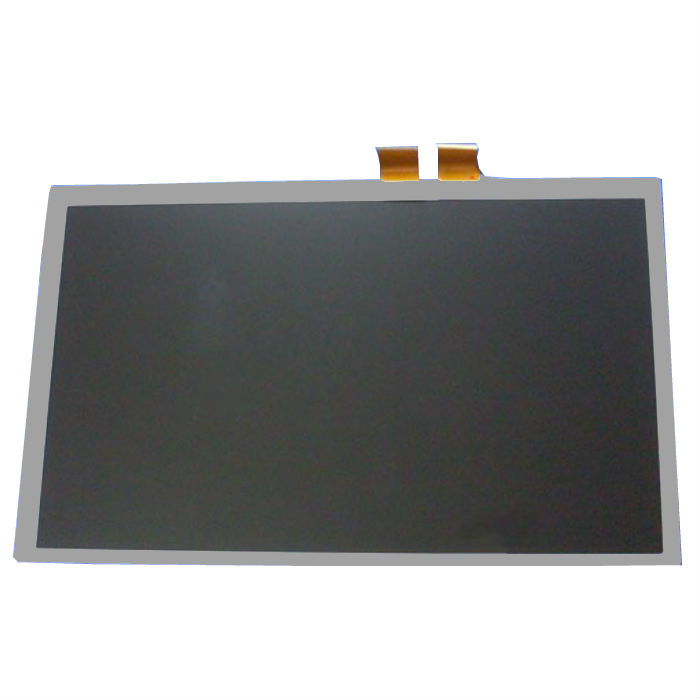

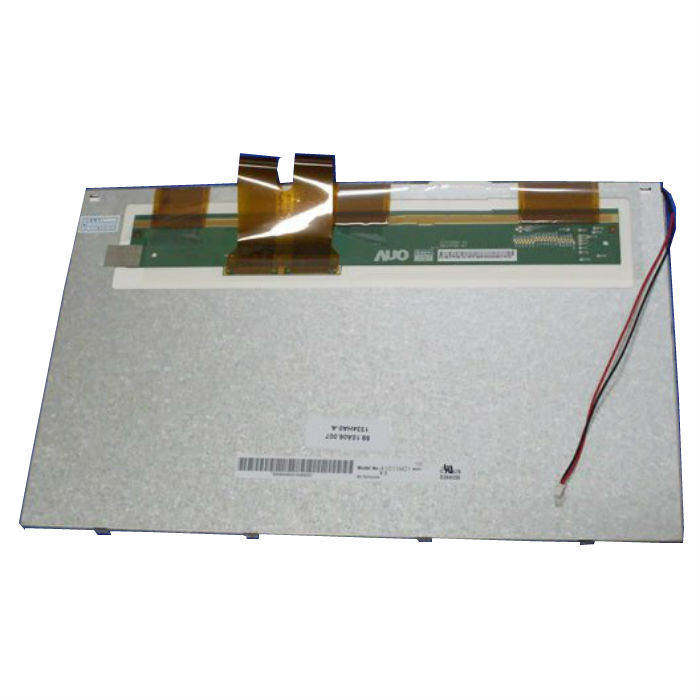

10.1'' 800x480 TFT LCD screen A101VW01 V3
A grade new original,12months warranty
Brand Name: AUO
Luminance(nits): 300
Contrast(%): 500
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 65/65/45/65
Interface: Digital Parallel 6-bit
Operation Temperature: -10~60℃
Outline Dimension: 235*145.9*5.4(mm)
Surface: Anti-glare
MOQ:1PC
Introduction
General Description:
Payment Terms: 100% in Advance
Shipping Methods:
A101VW01 V3 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. This LCD model is mainly designed for portable DVD and digital photo frame application.
Packaging Form:
Amount Per Box: 20pcs
Box Size:520(L) x 340(W) x 250(H) (mm)
Box Gross Weight:10.1kgs
