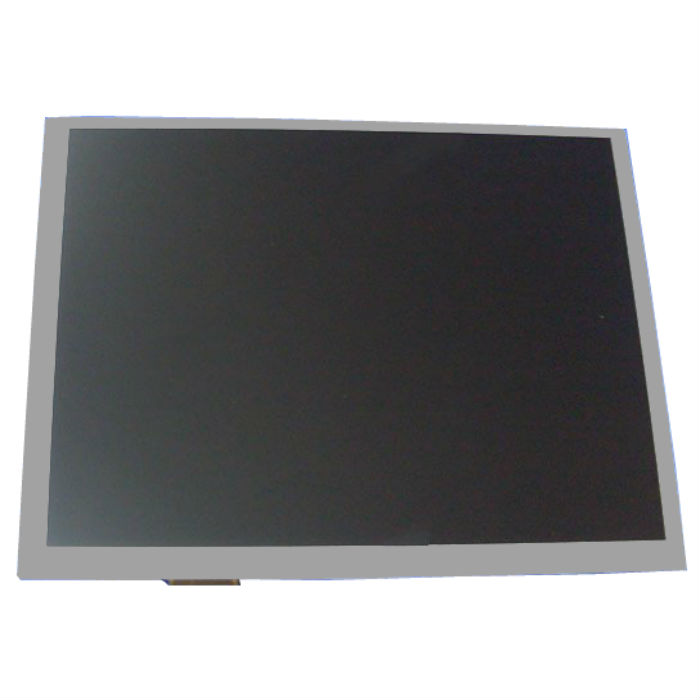

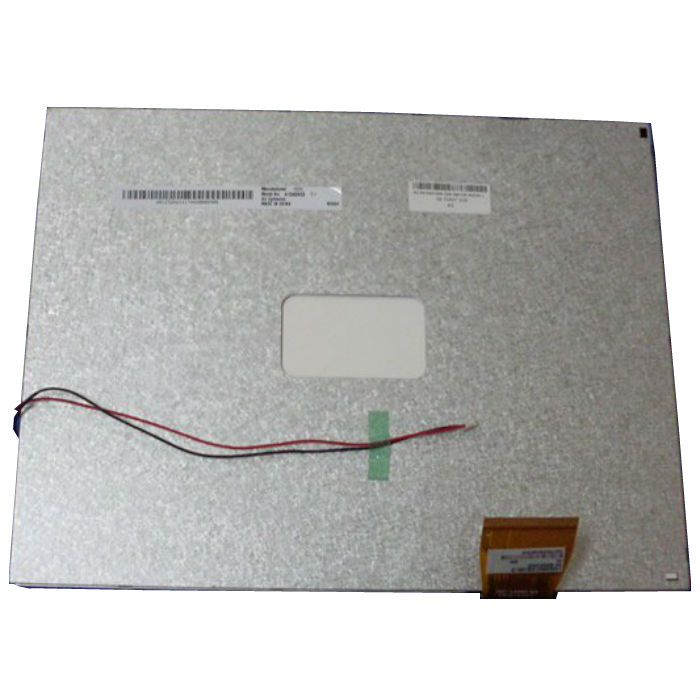

10.4'' 800x600 TTL+SPI LCD display A104SN03 V1
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 300
Contrast(%): 500
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 75/75/50/60
Interface: Digital Parallel 8-bit(TTL+SPI)
Operation Temperature: -10~60℃
Outline Dimension: 228.4*175.4*6.2(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
Packaging Form:
A104SN03 V1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system.It is designed for portable DVD,digital photo frame and some other display applications.
Packaging Form:
Amount per Box:20pcs
Box Size: 483*296*355 mm(L*W*H)
Box Gross Weight: 11.0kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
