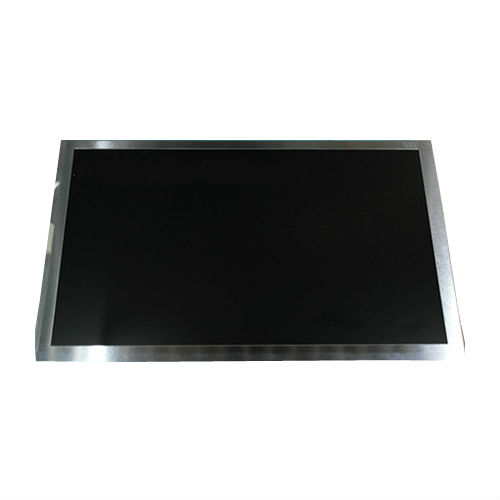

11.6'' 1366x768 HD TFT LCD module A116XW02 V0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 275
Contrast(%): 450
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 60/60/35/55
Interface: LVDS 6/8 bit
Operation Temperature: 0~70℃
Outline Dimension: 282.2*168.0*13.0(mm)
Surface: Anti-glare
MOQ:1PC
Introduction
General Description:
Packaging Form:
A116XW02 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver and power supply circuit and a LED backlight system. The LED unit is replaceable.All input signals are LVDS interface.
Packaging Form:
Amount per Box:15pcs
Box Size: 520*340*250 mm(L*W*H)
Box Gross Weight: 11.6kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
