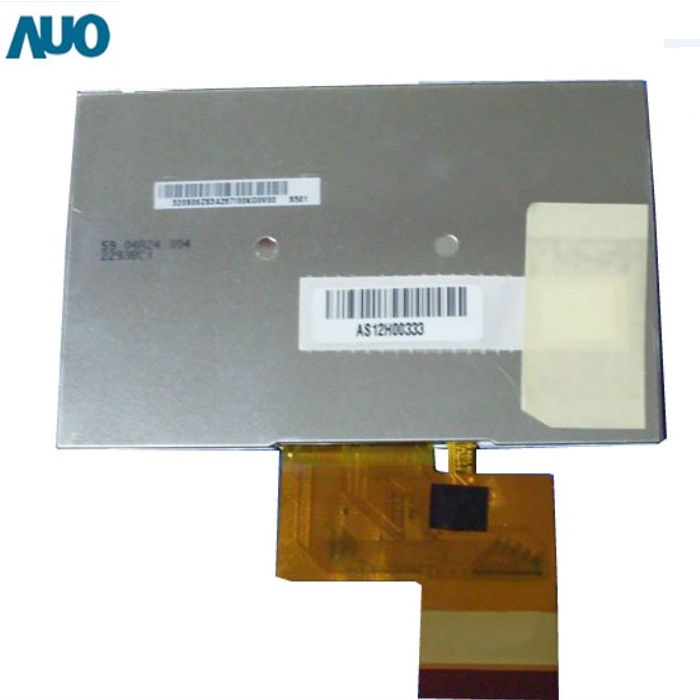

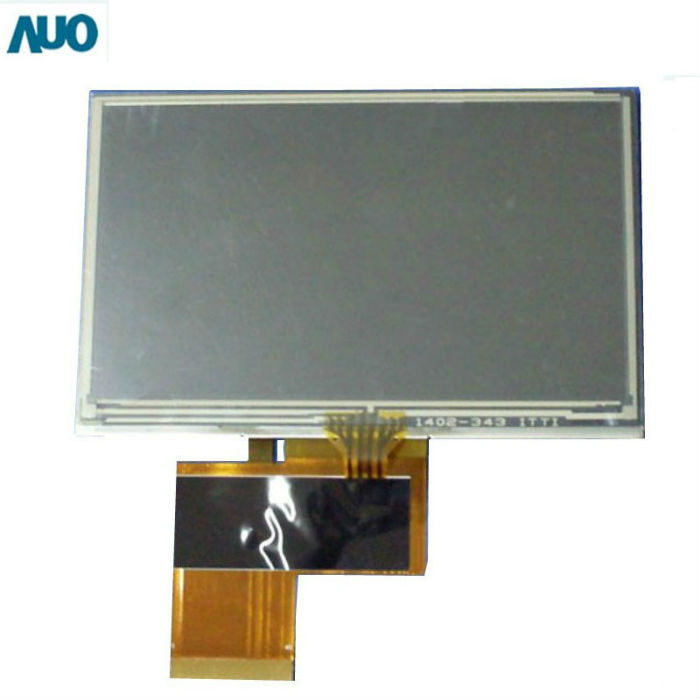

4.3inch 480x272 touch screen LCD module G043FTT01.0
Brand Name: AUO
Type: TFT
Size: 4.3'' diagonal
Resolution: 480 x 272 (WQVGA)
Luminance(nits): 400
Display Mode: TN,normally white,transmissive
Viewing Angle: 65/65/50/55
Interface: Digital Parallel RGB 8-bit
Operation Temperature: 0~70℃
Outline Dimension: 105.5*67.2*4.13(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
G043FTT01.0 is a 4.3 inch color TFT LCD embeded with 4-wire resistive touch screen. The screen format is intended to support WQVGA(480xRGBx272) resolution and 16.7M (RGB 8bit) colors. It is composed of a TFT-LCD panel,touch screen,driver ICs,control and power supply circuits board and a backlight unit including LED driving circuit.
Packing Form
Amount Per Box:120pcs
Box Size: 520(L) x 340(W) x 250(H) (mm)
Box Gross Weight: 12.0 kgs(Max.)
Payment Terms: 100% in Advance
Shipping Methods:
