10.4'' 800x600 LVDS TFT LCD module G104SN02 V2

A grade, new, original, 12months warranty

Brand Name: AUO

Luminance(nits): 400

Contrast(%): 700

Display Mode: TN mode,normally white,transmissive

Viewing Angle: 80/80/60/80

Interface: LVDS 6/8 bit

Operation Temperature: -30~85℃

Outline Dimension: 243.0*184.0*8.0(mm)

Surface: Anti-glare,Hard coating(3H)

MOQ:1PC

Contact now

Introduction

General Description:

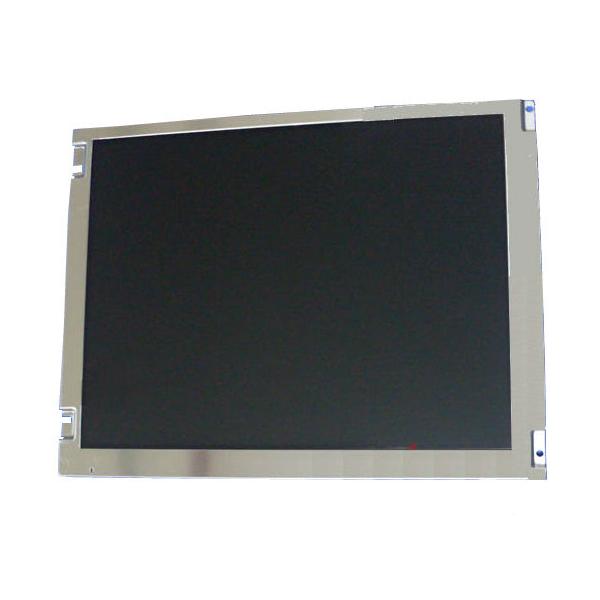

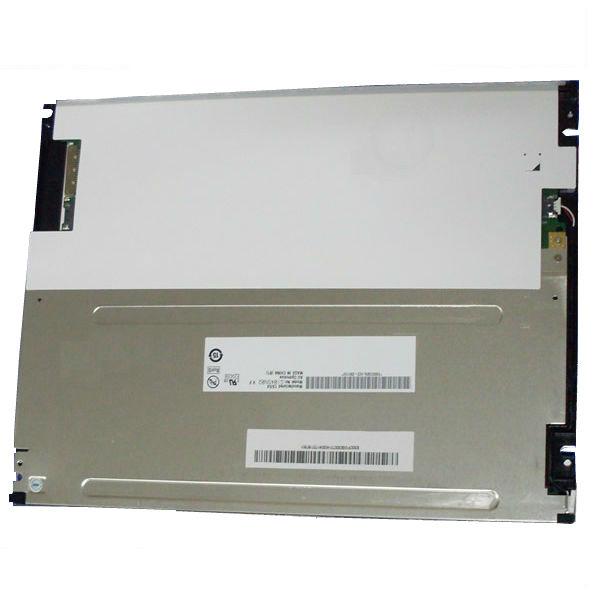

G104SN02 V2 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k colors.
LED driving board for backlight unit is included in G104SN02 V2 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G104SN02 V1.
G104SN02 V2 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.

G104SN02 V2 is a RoHS product.


Packaging Form:

Amount per Box: 20pcs
Box Size: 483*285*355 mm(L*W*H)
Box Gross Weight: 10kgs


Payment Terms: 100% in Advance
