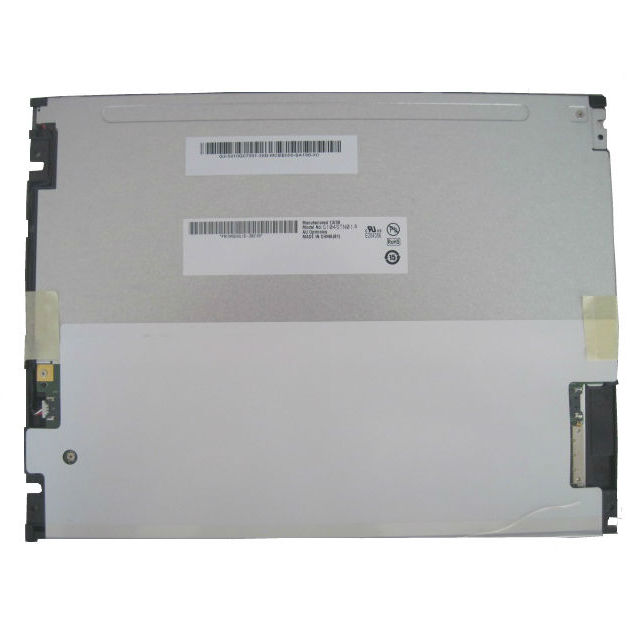

10.4'' TFT 800x600 LCD display G104STN01.0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 400
Contrast(%): 700
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/60/70
Interface: LVDS 6/8 bit
Operation Temperature: -30~80℃
Outline Dimension: 243.0*184.0*6.5(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G104STN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k colors.
LED driving board for backlight unit is included in G104STN01.0 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G104SN02 V2.
G104STN01.0 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
G104STN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k colors.
LED driving board for backlight unit is included in G104STN01.0 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G104SN02 V2.
G104STN01.0 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
G104STN01.0 is a RoHS product.
Packaging Form:
Amount per Box: 20pcs
Box Size: 570*320*420 mm(L*W*H)
Box Gross Weight: 14.8kgs
Payment Terms: 100% in Advance
