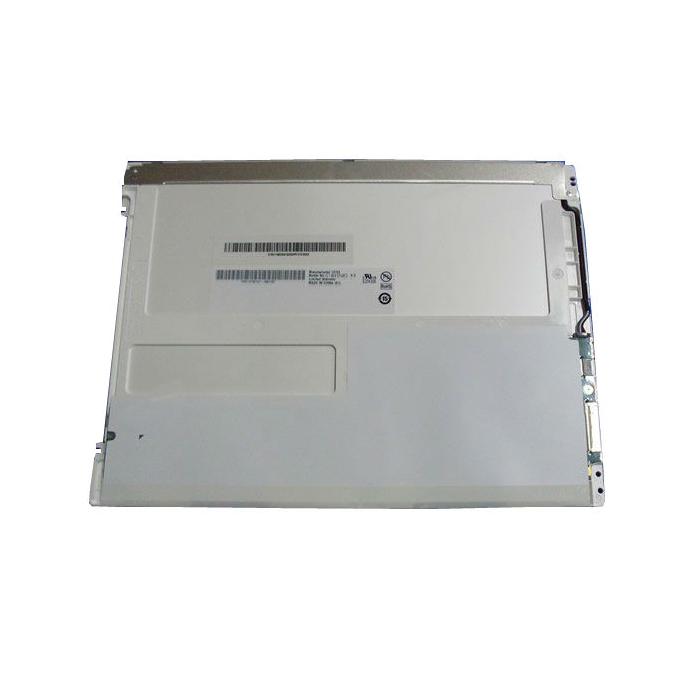

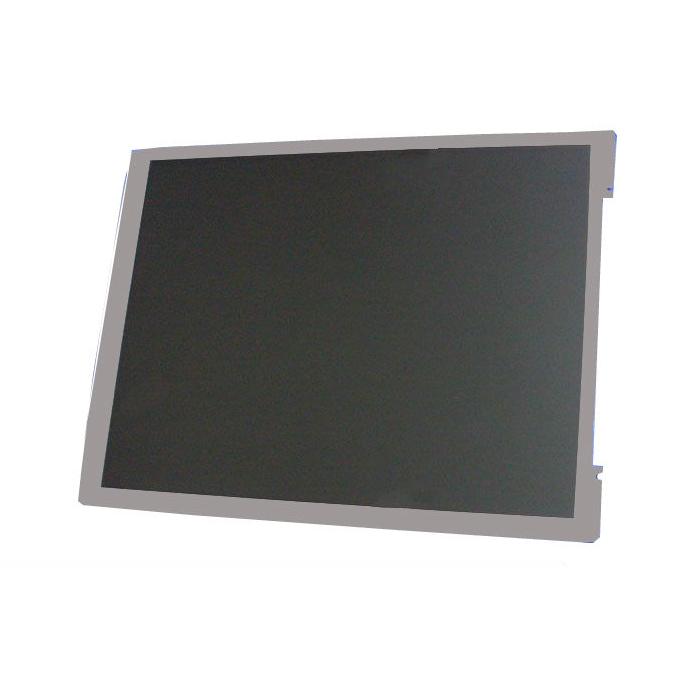

10.4'' 800x600 LCD screen G104SN03 V5 LVDS interface
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 230
Contrast(%): 500
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/60/70
Interface: LVDS 6/8 bit
Operation Temperature: -20~70℃
Outline Dimension: 236.0*176.9*5.7(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G104SN03 V5 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k color.
LED driving board for backlight unit is included in G104SN03 V5 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G104SN03 V1.
G104SN03 V5 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
G104SN03 V5 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k color.
LED driving board for backlight unit is included in G104SN03 V5 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G104SN03 V1.
G104SN03 V5 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
G104SN03 V5 is a RoHS product.
Packaging Form:
Amount per Box: 30pcs
Box Size: 448*402*350 mm(L*W*H)
Box Gross Weight: 13kgs
Payment Terms: 100% in Advance
