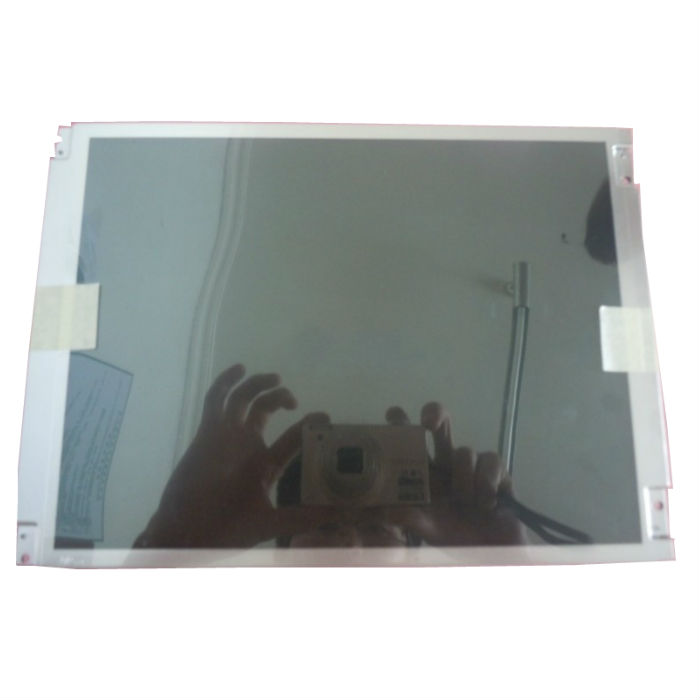

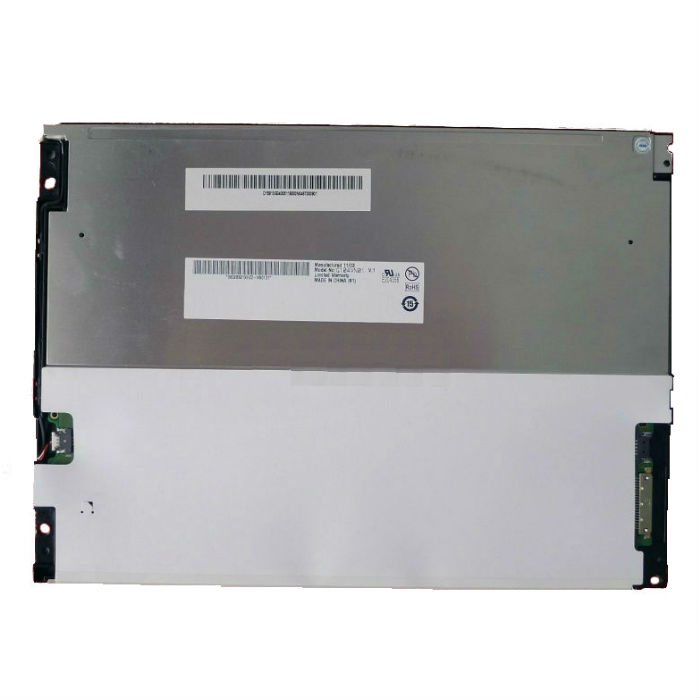

10.4'' 640x480 TFT LCD screen G104VN01 V1
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 450
Contrast(%): 700
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/60/80
Interface: LVDS 6/8 bit
Operation Temperature: -30~85℃
Outline Dimension: 243.0*176.6*8.0(mm)
Surface: Anti-glare,Hard coating(3H)
MOQ:1PC
Introduction
General Description:
G104VN01 V1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k color.
LED driving board for backlight unit is included in G104VN01 V1 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G104SN02 V1.
G104VN01 V1 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
Packaging Form:
G104VN01 V1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k color.
LED driving board for backlight unit is included in G104VN01 V1 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G104SN02 V1.
G104VN01 V1 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
G104VN01 V1 is a RoHS product.
Packaging Form:
Amount per Box: 20pcs
Box Size: 483*285*355 mm(L*W*H)
Box Gross Weight: 10kgs
