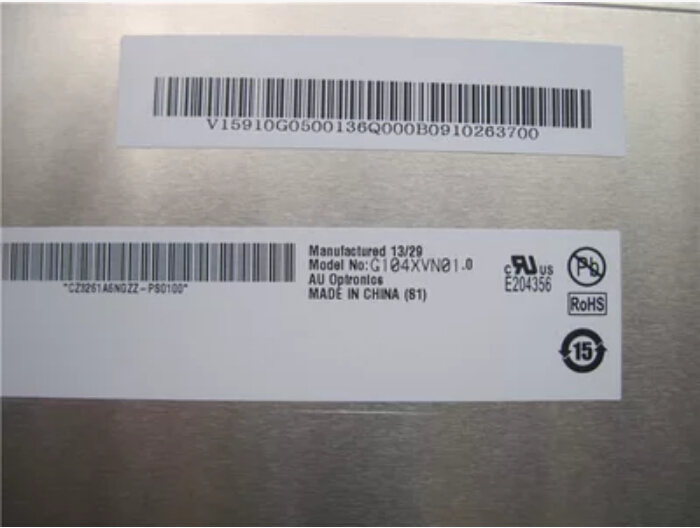

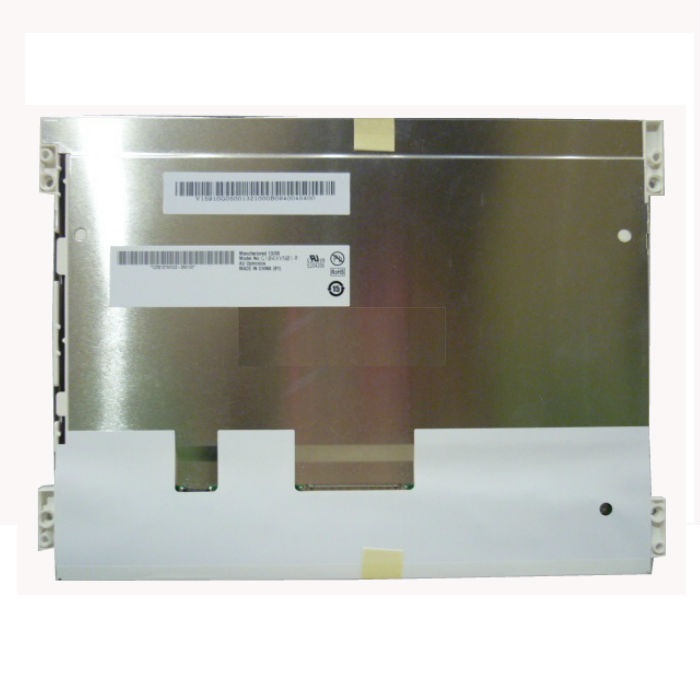

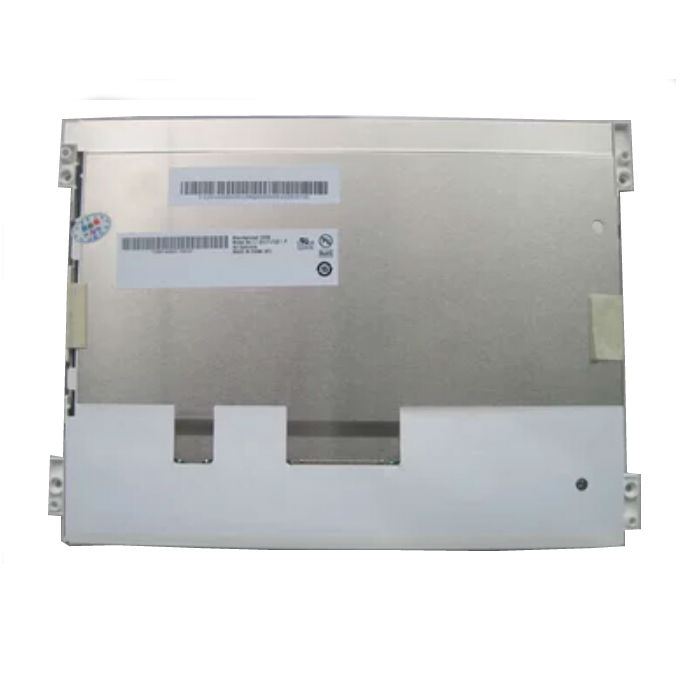

10.4'' 1024x768 TFT LCD panel G104XVN01.0

A grade, new, original, 12months warranty

Brand Name: AUO

Luminance(nits): 400

Contrast(%): 3000

Display Mode: (PSA) AMVA3 mode,normally black,transmissive

Viewing Angle: 89/89/89/89

Interface: LVDS 6/8 bit

Operation Temperature: -30~80℃

Outline Dimension: 238.6*175.8*6.5(mm)

Surface: Anti-glare,Hard coating(3H)

MOQ:1PC

Contact now

Introduction

General Description:
G104XVN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver and power supply circuit and a LED backlight system. The screen format is intended to support 16.2M or 262k colors.
LED driving board for backlight unit is included in G104XVN01.0 and the LED unit is replaceable.
G104XVN01.0 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.

G104XVN01.0 is a RoHS product.


Packaging Form:

Amount per Box: 40pcs
Box Size: 458*412*368 mm(L*W*H)
Box Gross Weight: 14.5kgs


Payment Terms: 100% in Advance
