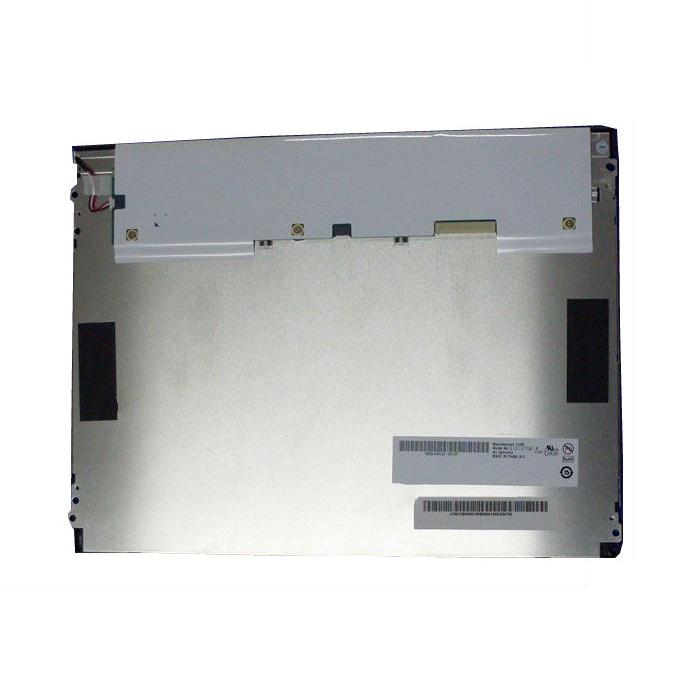

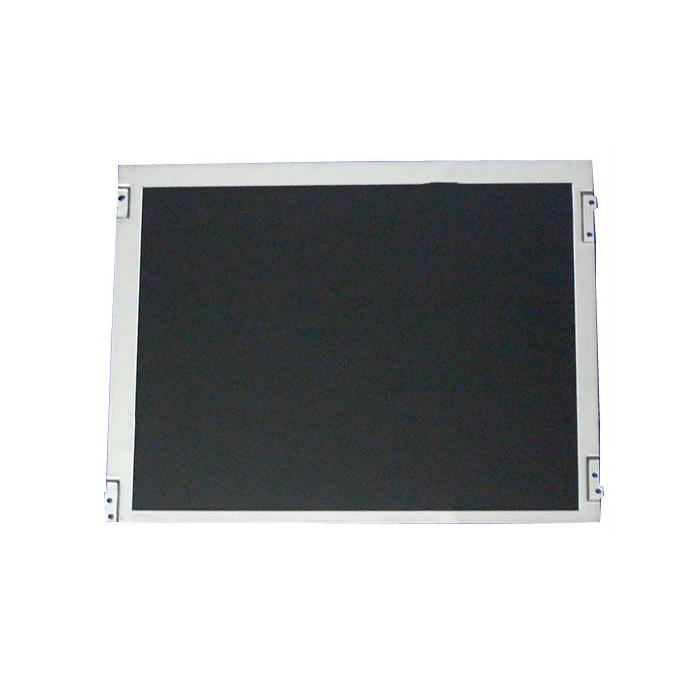

12.1'' 800x600 TFT type industrial LCD screen G121STN01.0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 300
Contrast(%): 600
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/65/75
Interface: LVDS 6/8 bit
Operation Temperature: -30~85℃
Outline Dimension: 279.0*209.0*9.0(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
G121STN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver and power supply circuit and a LED backlight system. LED driving board for backlight unit is included in G121XTN01.0 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G121SN01 V3 and G121SN01 V4.
G121STN01.0 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
Packaging Form:
G121STN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver and power supply circuit and a LED backlight system. LED driving board for backlight unit is included in G121XTN01.0 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G121SN01 V3 and G121SN01 V4.
G121STN01.0 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
G121STN01.0 is a RoHS product.
Packaging Form:
Amount per Box: 20pcs
Box Size: 570*320*420 mm(L*W*H)
Box Gross Weight: 14.8kgs
Payment Terms: 100% in Advance
