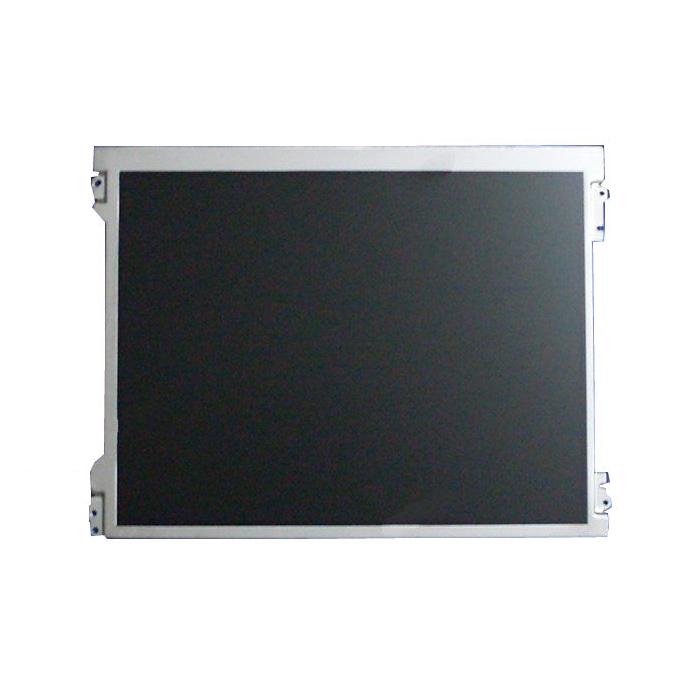

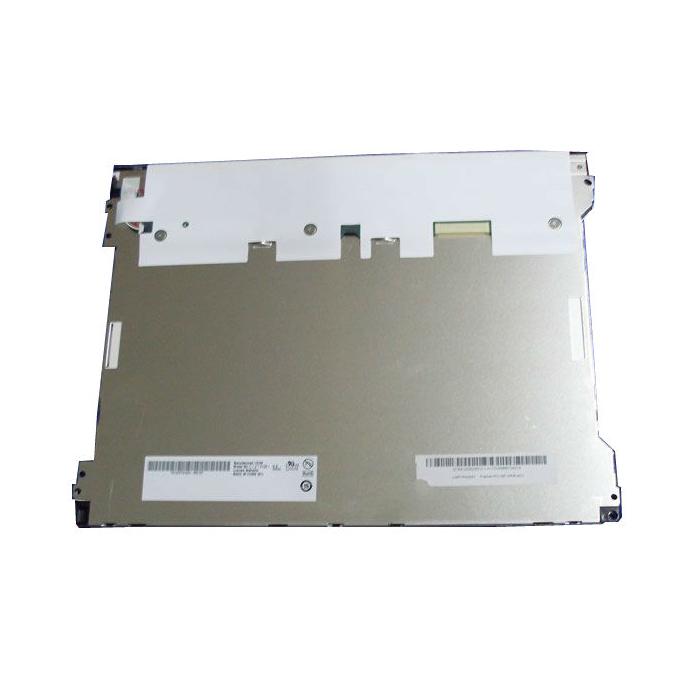

12.1'' 1024x768 TFT type LCD panel G121XN01 V0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 500
Contrast(%): 700
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/80/80
Interface: LVDS 6/8 bit
Operation Temperature: -30~85℃
Outline Dimension: 279.0*209.0*9.0(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
G121XN01 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver and power supply circuit and a LED backlight system. LED driving board for backlight unit is included in G121XTN01.0 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G121SN01 V3 and G121SN01 V4.
G121XN01 V0 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
Packaging Form:
G121XN01 V0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver and power supply circuit and a LED backlight system. LED driving board for backlight unit is included in G121XTN01.0 and the LED unit is replaceable.
All input signals are LVDS interface and compatible with G121SN01 V3 and G121SN01 V4.
G121XN01 V0 is designed with wide viewing angle,wide temperature and long-life LED backlight which is well suited for industrial display applications.
G121XN01 V0 is a RoHS product.
Packaging Form:
Amount per Box: 20pcs
Box Size: 570*320*420 mm(L*W*H)
Box Gross Weight: 14.8kgs
Payment Terms: 100% in Advance
