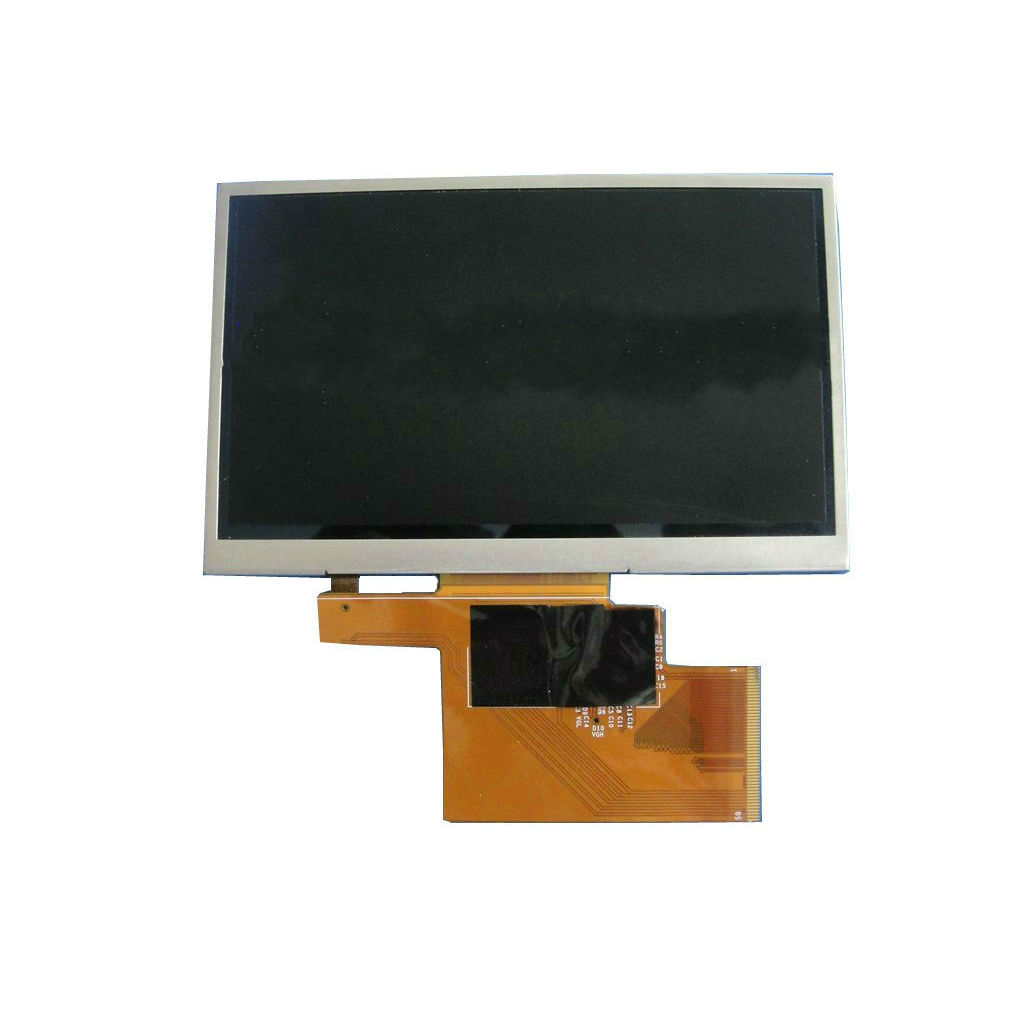

4.3inch TFT 480x272 LCD panel A043FW03 V2
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 500
Contrast(%): 800
Display Mode: AMVA3,normally black,transmissive
Viewing Angle: 80/80/80/80
Interface: Digital Parallel RGB 8-bit
Operation Temperature: -20~70℃
Outline Dimension: 105.5*67.2*2.9(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
A043FW03 V2 is a 4.3 inch color TFT LCD designed with AMVA3 technology. The screen format is intended to support WQVGA(480xRGBx272) resolution and 16.7M (RGB 8bit) colors. It is composed of a TFT-LCD panel,driver ICs and backlight unit. A043FW03 V2 offers TTL interface for display signal input.
Packing Form:
Amount per Box:150pcs
Box size:520x340x250 (mm)
Box gross weight:13.65kgs
