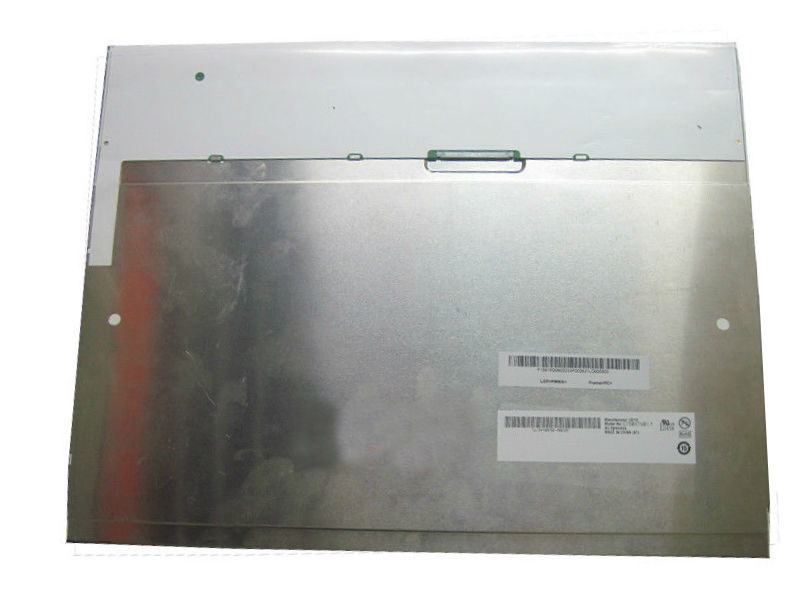

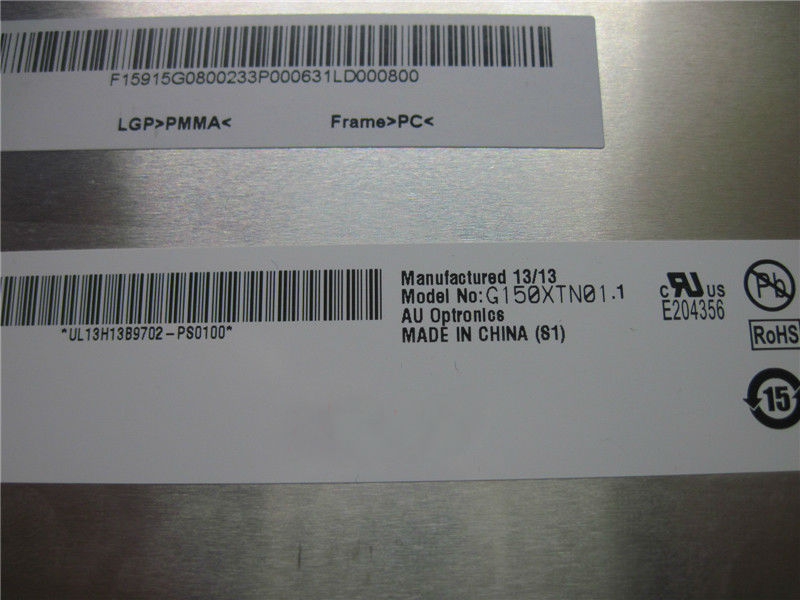

15'' LCD panel G150XTN01.1 with USB touch screen optional
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 350
Contrast(%): 700
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/60/80
Interface: LVDS 8 bit
Operation Temperature: -20~70℃
Outline Dimension: 326.5*253.5*(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
G150XTN01.1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit and a backlight system. The screen format is intended to support XGA screen and 16.2M(RGB 8-bits) colors.
Packaging Form:
G150XTN01.1 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit and a backlight system. The screen format is intended to support XGA screen and 16.2M(RGB 8-bits) colors.

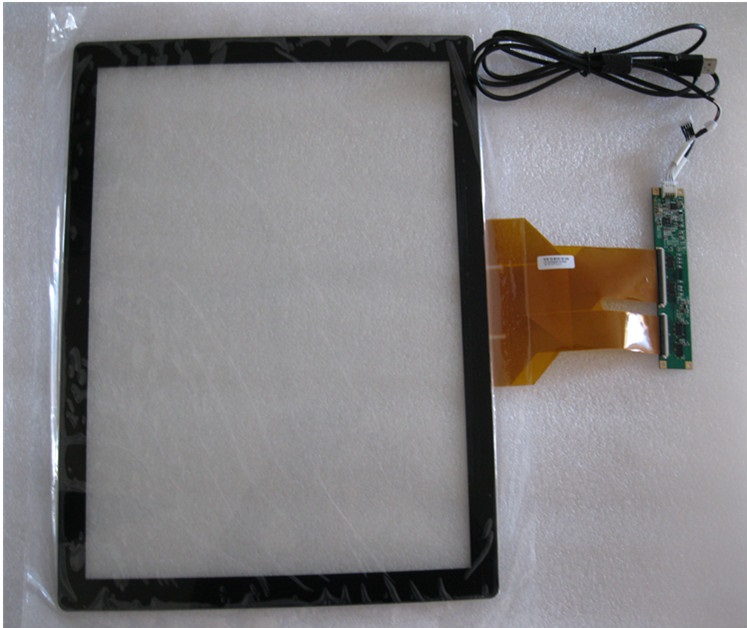

Matching 15inch capacitive touch screen with USB controller is available.
Packaging Form:
Amount per Box: 12pcs
Box Size: 375*430*353 mm(L*W*H)
Box Gross Weight: 20kgs
Payment Terms: 100% in Advance
