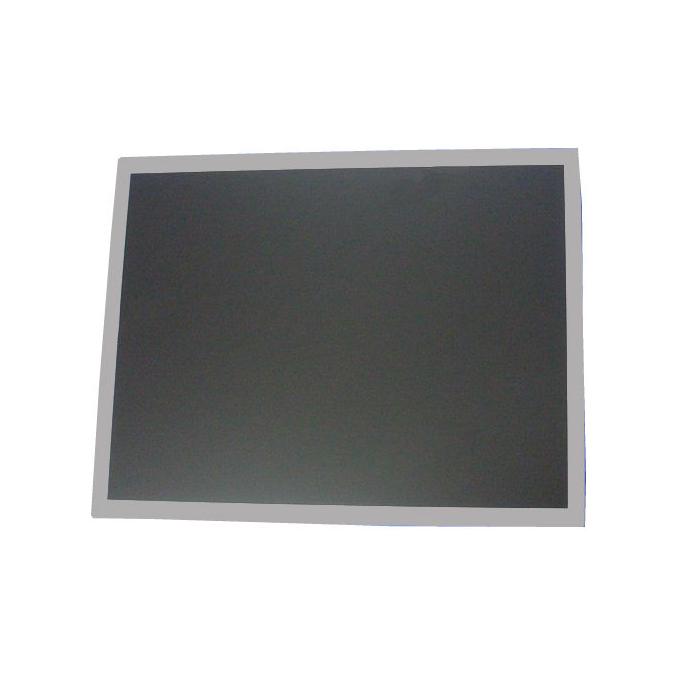

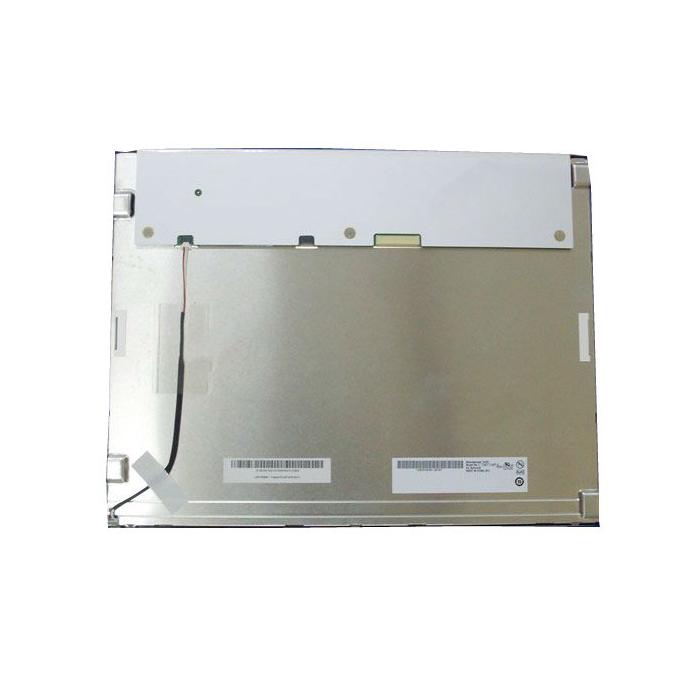

15'' 1024x768 LCD display screen G150XTN05.0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 350
Contrast(%): 700
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/70/70
Interface: LVDS 6/8 bit
Operation Temperature: -30~85℃
Outline Dimension: 326.5*253.5*12.0(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
G150XTN05.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit and a backlight system. The screen format is intended to support XGA screen and 16.2M(RGB 8-bits) colors. All input signals are LVDS interface compatible.All design rules of this module can correspond to PSWG(Panel Standard Work Group) standard.
Packaging Form:
G150XTN05.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit and a backlight system. The screen format is intended to support XGA screen and 16.2M(RGB 8-bits) colors. All input signals are LVDS interface compatible.All design rules of this module can correspond to PSWG(Panel Standard Work Group) standard.
G150XTN05.0 was designed for industrial display applications.

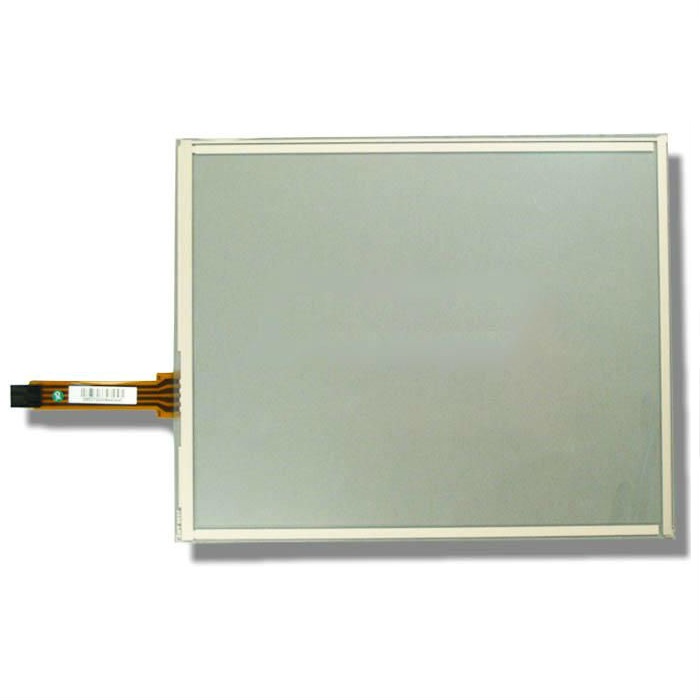

Matching 15'' Touch Screen:
Packaging Form:
Amount per Box: 12pcs
Box Size: 430*334*350 mm(L*W*H)
Box Gross Weight: 12.56kgs
