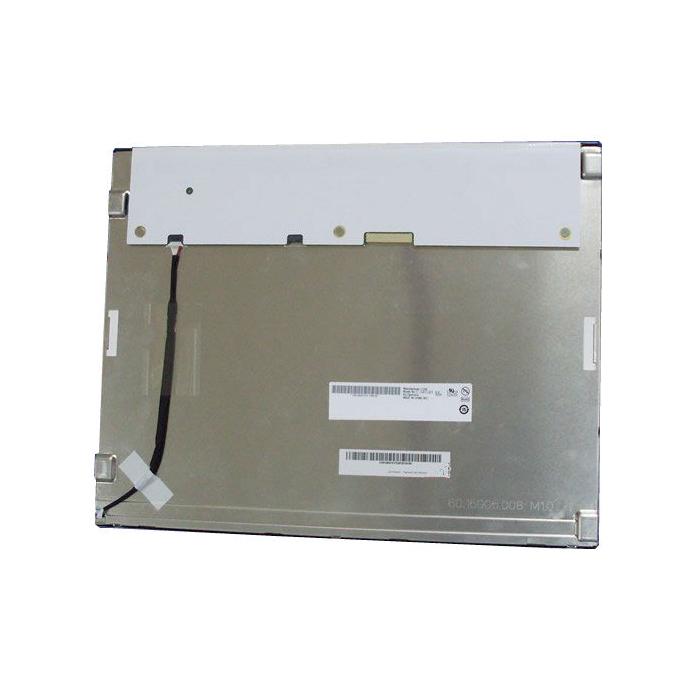

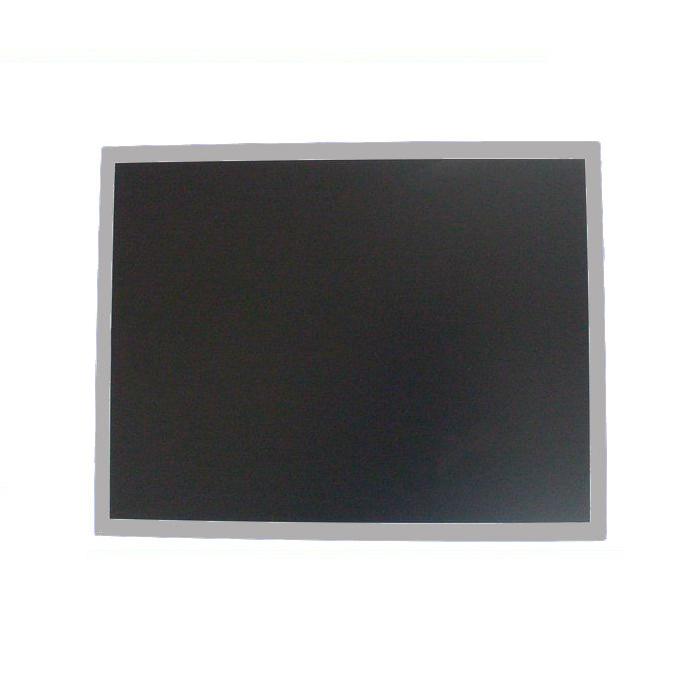

15'' 1024x768 industrial LCD panel G150XG03 V4
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 250
Contrast(%): 700
Display Mode: TN mode,normally white,transmissive
Viewing Angle: 80/80/70/70
Interface: LVDS 6/8 bit
Operation Temperature: -30~85℃
Outline Dimension: 326.5*253.5*12.0(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
G150XG03 V4 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit and a backlight system. The screen format is intended to support XGA screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits). All input signals are LVDS interface compatible.All design rules of this module can correspond to PSWG(Panel Standard Work Group) standard.
Packaging Form:
G150XG03 V4 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit and a backlight system. The screen format is intended to support XGA screen and 16.2M(RGB 8-bits) or 262k colors (RGB 6-bits). All input signals are LVDS interface compatible.All design rules of this module can correspond to PSWG(Panel Standard Work Group) standard.
G150XG03 V4 is designed for industrial display applications.
Packaging Form:
Amount per Box: 12pcs
Box Size: 430*384*350 mm(L*W*H)
Box Gross Weight: 12.56kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
