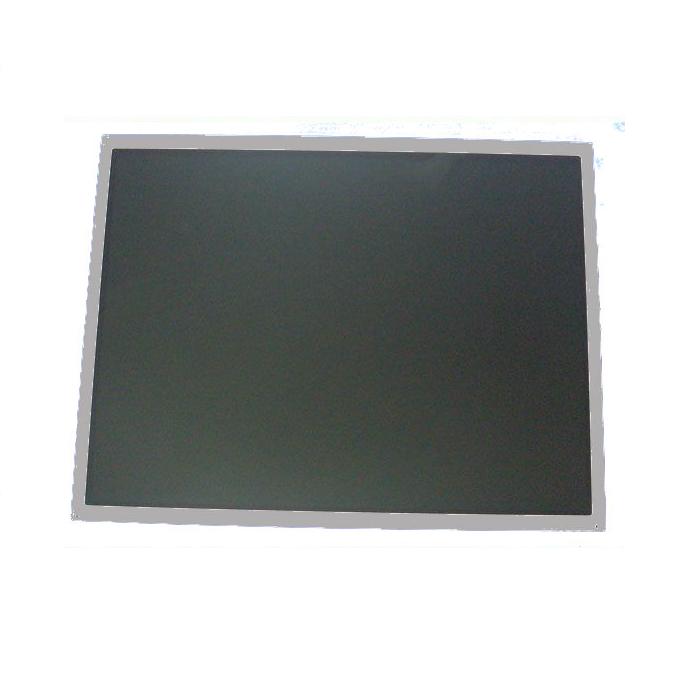

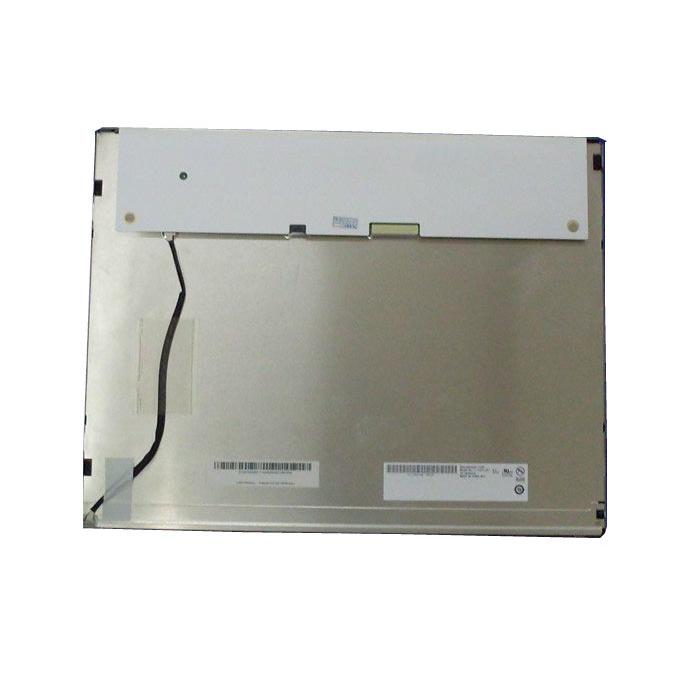

15'' 1024x768 display LCD screen G150XG03 V5

A grade, new, original, 12months warranty

Brand Name: AUO

Luminance(nits): 250

Contrast(%): 700

Display Mode: TN mode,normally white,transmissive

Viewing Angle: 80/80/60/80

Interface: LVDS 6/8 bit

Operation Temperature: -30~85℃

Outline Dimension: 326.5*253.5*13.1(mm)

Surface: Anti-glare,Hard coating(3H)

Contact now

Introduction

General Description:
G150XG03 V5 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit and a backlight system. The screen format is intended to support XGA screen and 16.2M(RGB 8-bits) colors. All input signals are LVDS interface compatible. All design rules of this module can correspond to PSWG(Panel Standard Work Group) standard.

G150XG03 V5 is designed for industrial display applications.


Packaging Form:

Amount per box:12pcs
Box dimensions:43cm x 39cm x 35cm
Box gross weight: 12.56kgs


Payment Terms: 100% in Advance
