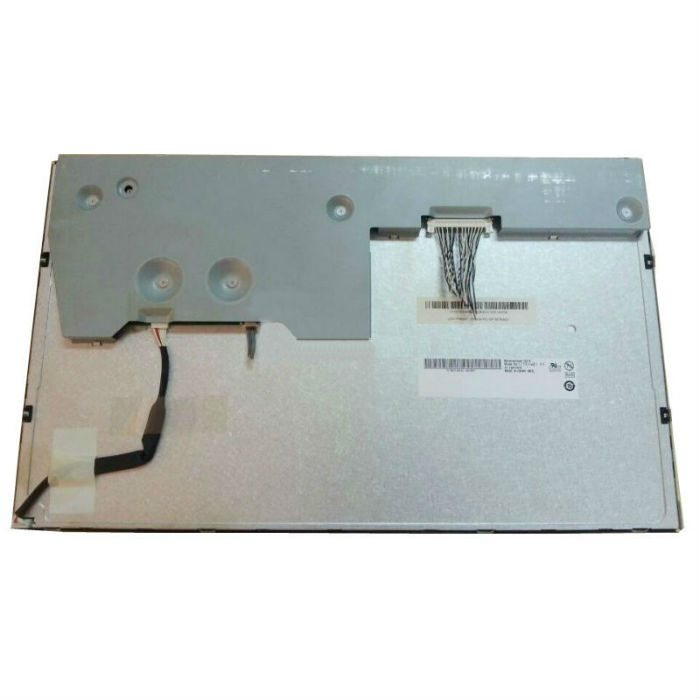

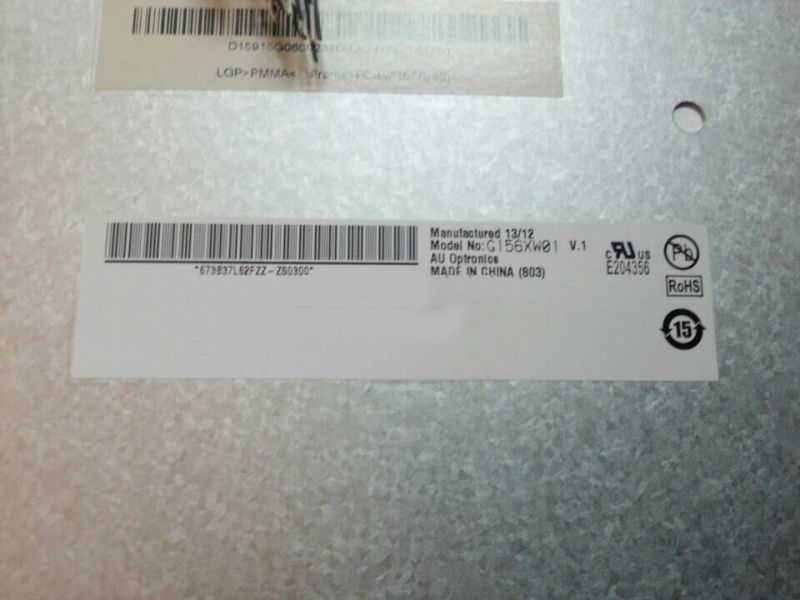

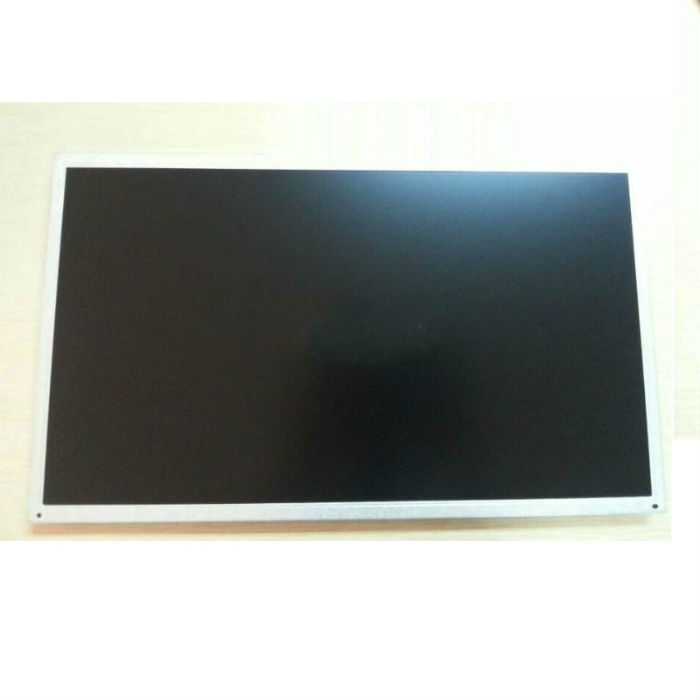

15.6'' 1366x768 TFT industrial LCD display G156XW01 V1

A grade, new, original, 12months warranty

Brand Name: AUO

Luminance(nits): 300

Contrast(%): 500

Backlight: LED

Viewing Angle: 85/85/80/80

Interface: LVDS 8 bit

Operation Temperature: 0~60℃

Outline Dimension: 363.8*215.9*16.85(mm)

Surface: Anti-glare,Hard coating(3H)

Contact now

Introduction

General Description:

G156XW01 V1 is a 15.6 inch-wide color a-Si TFT LCD module. The display supports the HD screen format and 16.7M(RGB 6-bits+Hi-FRC data) colors. All input signals are LVDS interface and this module contains an LED driver for backlight.


Packaging Form:

Amount per Box: 11pcs
Box Size: 443*365*299 mm(L*W*H)
Box Gross Weight: 16.3kgs


Payment Terms: 100% in Advance
