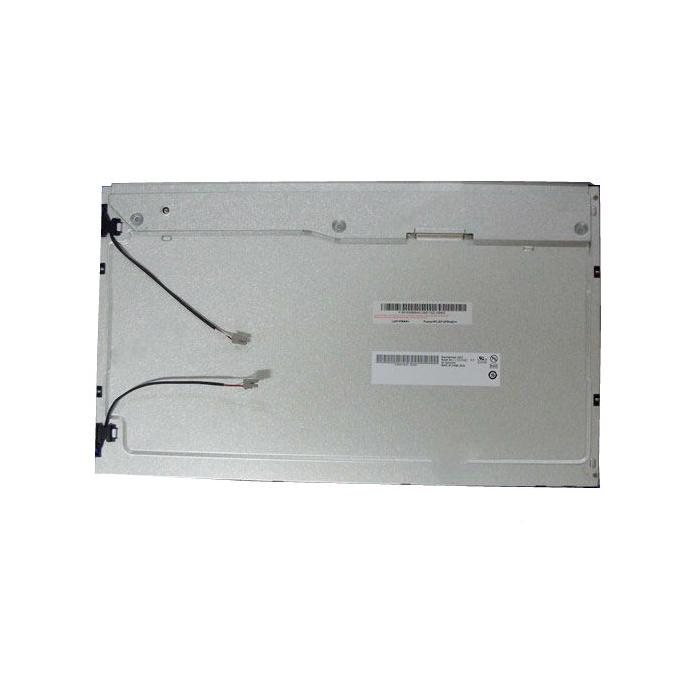

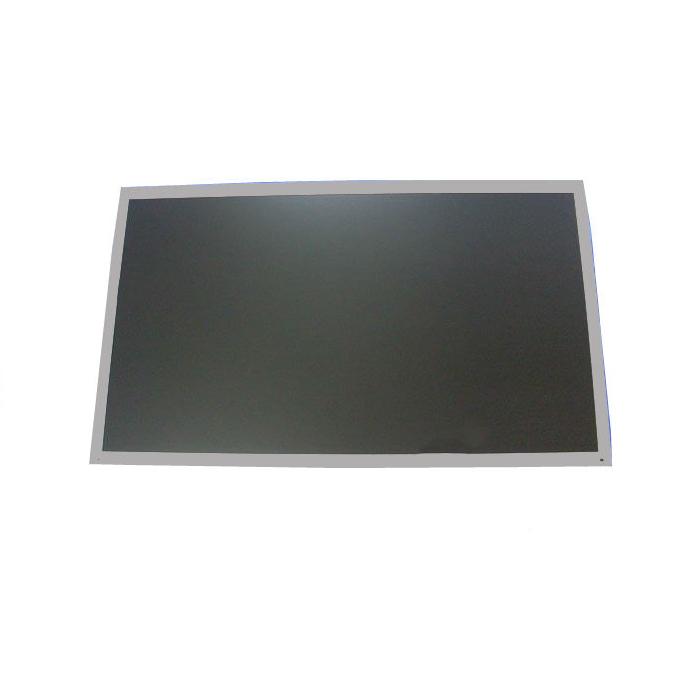

15.6'' 1366x768 TFT LCD screen G156XW01 V0
A grade, new, original, 12months warranty
Brand Name: AUO
Interface: LVDS 8-bit
Luminance: 300
Response time: 8ms
Viewing Angle: 85/85/80/80
Outline dimensions: 363.8*215.9*14.3(mm)
Backlight: 2 CCFL
Operating Temperature: 0~+60 ℃
Surface: Anti-glare,3H
Introduction
General Description:
Packaging Form:
G156XW01 V0 is a 15.6 inch-wide color a-Si TFT LCD module. The display supports the HD screen format and 16.7M(RGB 6-bits+Hi-FRC data) colors. All input signals are LVDS interface and this module doesn't contain an inverter board for backlight.
Packaging Form:
Amount per Box: 11pcs
Box Size: 443*365*299 mm(L*W*H)
Box Gross Weight: 14.7kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
