17'' 1280x1024 flat rectangle LCD display G170EG01 V0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 380
Contrast(%): 1000
Backlight: 4 CCFL
Viewing Angle: 85/85/80/80
Interface: LVDS 8 bit
Operation Temperature: 0~50℃
Outline Dimension: 358.5*296.5*15.8(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:

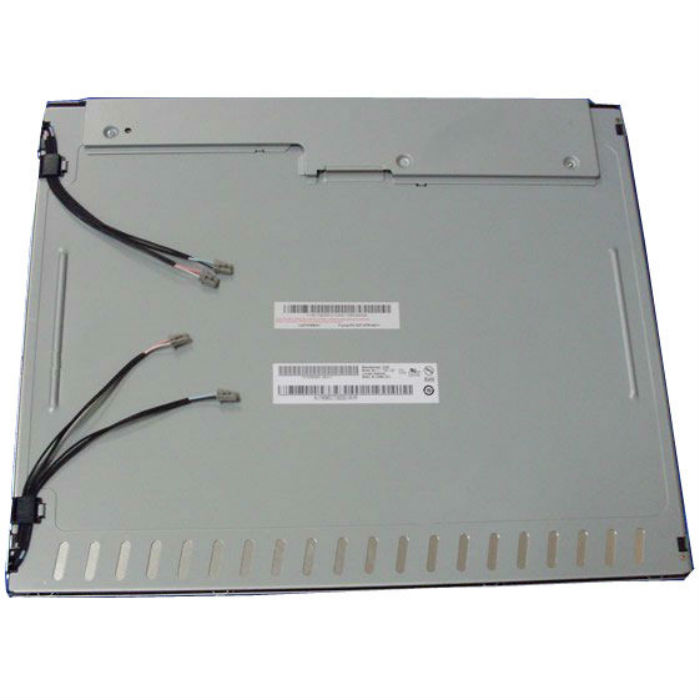

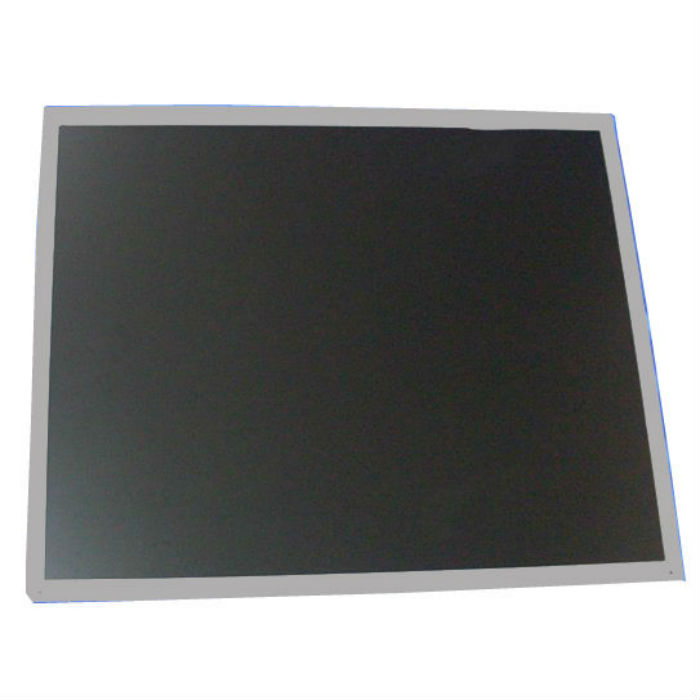

G170EG01 V0 is a 17 inch color TFT LCD module. The display supports the SXGA+1280*1024 screen format and 16.7M(RGB 6-bits+Hi-FRC data) colors. All input signals are 2-Channel LVDS interface compatible and this module does not contain an inverter card for backlight.
Packaging Form:
Amount per Box: 8pcs
Box Size: 434*378*390 mm(L*W*H)
Box Gross Weight: 17.85kgs
Payment Terms: 100% in Advance
