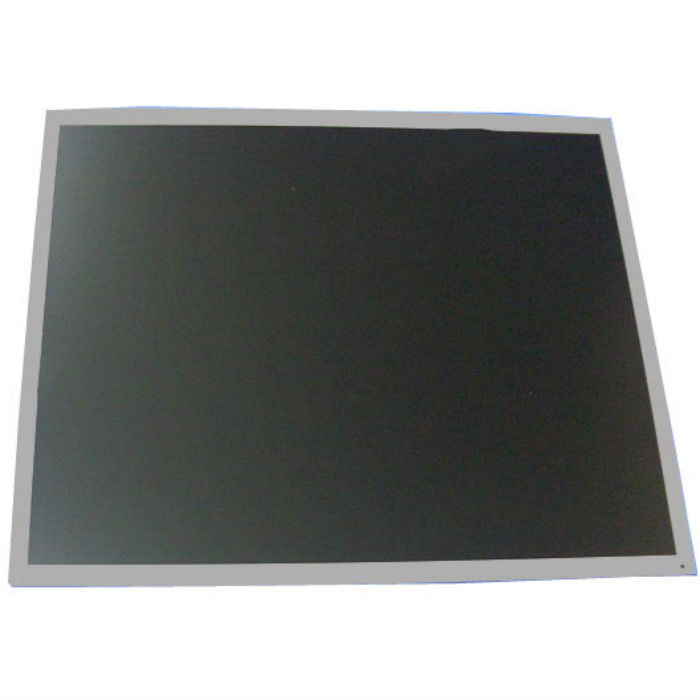

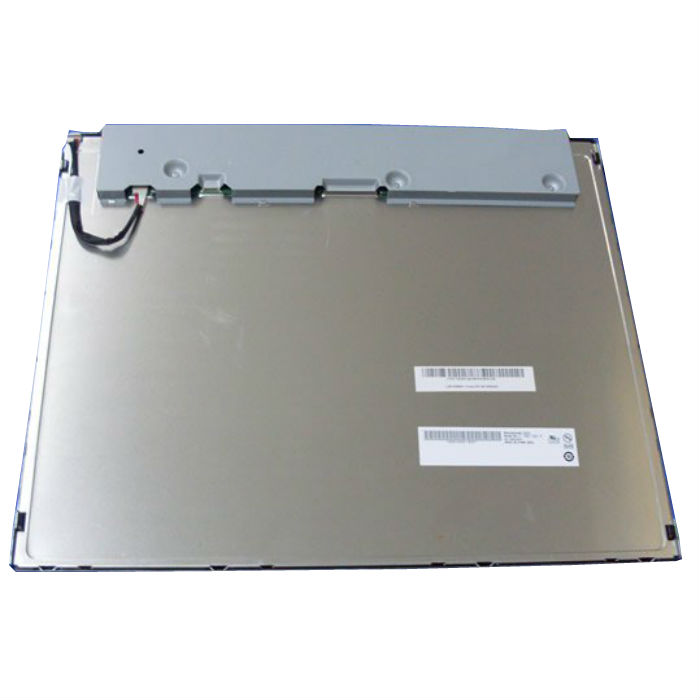

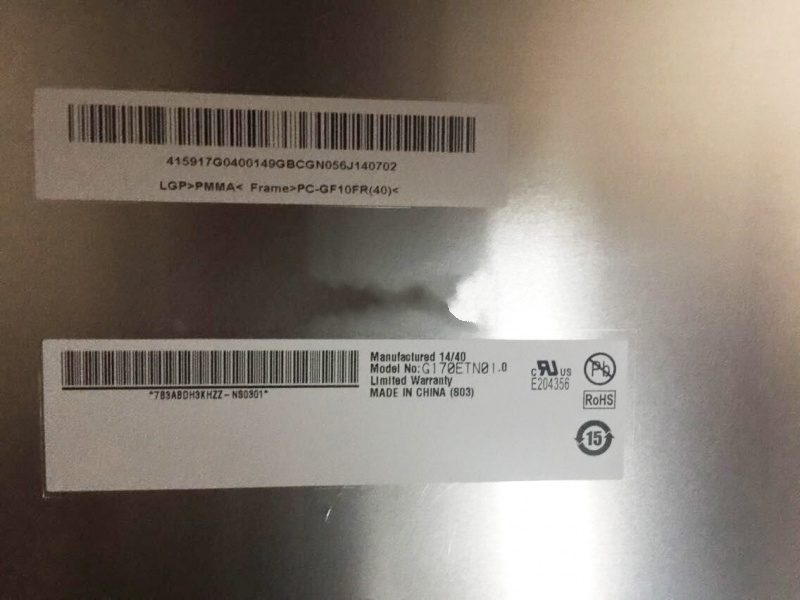

17'' 1280x1024 TFT LCD panel G170ETN01.0
A grade, new, original, 12months warranty
Brand Name: AUO
Luminance(nits): 250
Contrast(%): 1000
Backlight: LED
Viewing Angle: 85/85/80/80
Interface: LVDS 8 bit
Operation Temperature: 0~50℃
Outline Dimension: 358.5*296.5*18(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
G170ETN01.0 is a 17 inch color TFT LCD module. The display supports the SXGA(1280*1024) screen format and 16.2M(RGB 6-bits+Hi-FRC data) colors. All input signals are 2-Channel LVDS interface compatible and this module embeds an LED driver on it.
Packaging Form:
G170ETN01.0 is a 17 inch color TFT LCD module. The display supports the SXGA(1280*1024) screen format and 16.2M(RGB 6-bits+Hi-FRC data) colors. All input signals are 2-Channel LVDS interface compatible and this module embeds an LED driver on it.
Packaging Form:
Amount per Box: 8pcs
Box Size: 426*270*375 mm(L*W*H)
Box Gross Weight: 18.5kgs
Payment Terms: 100% in Advance
Shipping Methods:
Shipping Methods:
