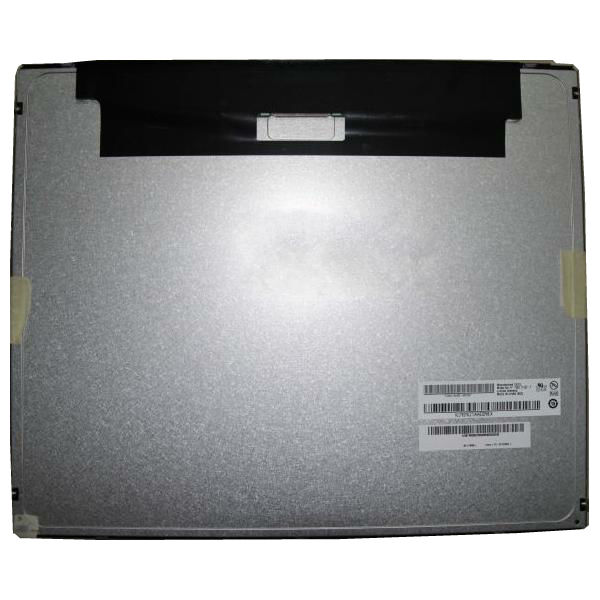

17'' 1280x1024 monitor display LCD screen M170ETN01.1
A grade, new, original, 12months warranty
Brand Name: AUO
Panel mode: TN,normally white,transmissive
Luminance(nits): 250
Contrast(%): 1000
Backlight: LED
Viewing Angle: 85/85/80/80
Interface: LVDS 8 bit,2 channels
Outline Dimension: 358.5*296.5*7.7(mm)
Surface: Anti-glare,Hard coating(3H)
Introduction
General Description:
M170ETN01.1 is a 17 inch color TFT LCD module. The display supports SXGA+1280*1024 screen format and 16.7M(RGB 6-bits+Hi-FRC data) colors. The input interface is Dual channel LVDS and this LCD module does not contain an driver board for backlight.
Packaging Form:
Amount per Box:8pcs
Box size:434x278x390(mm)(L x W x H)
Box gross weight: 13.45kgs
Payment Terms: 100% in Advance
