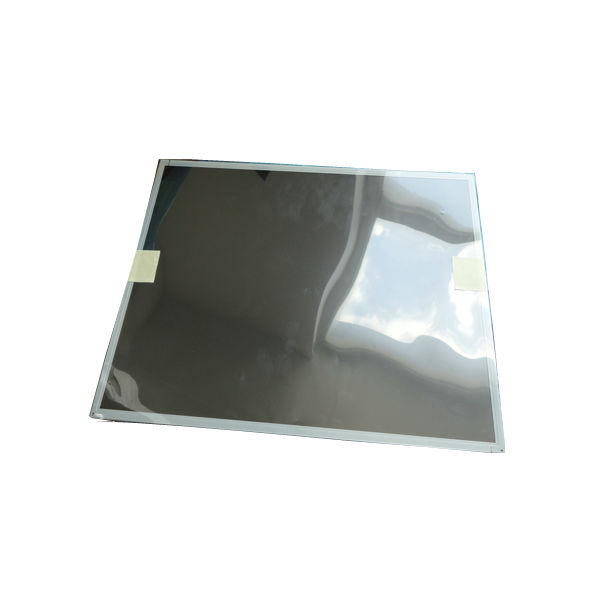

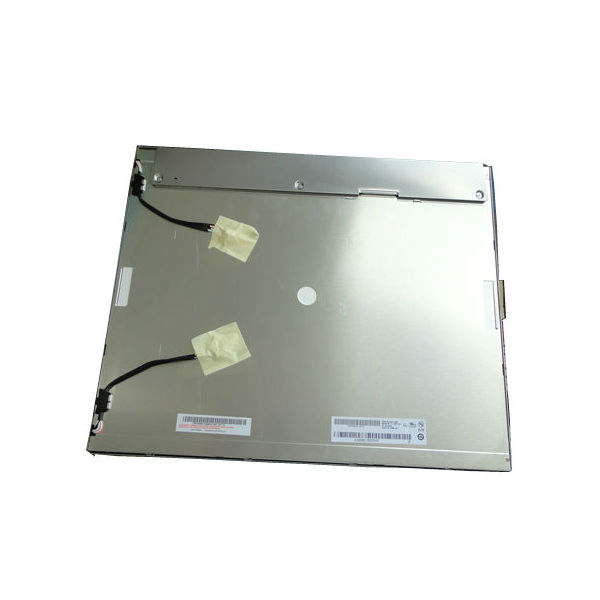

19'' 1280x1024 MVA monitor LCD screen M190EG01 V3
A grade, new, original, 12months warranty
Brand Name: AUO
Panel mode: MVA,normally black,transmissive
Luminance(nits): 300
Contrast(%): 2000
Backlight: 4 CCFL
Viewing Angle: 89/89/89/89
Interface: LVDS 8 bit
Outline Dimension: 396.0*324.0*17.5(mm)
Surface: Anti-glare
Introduction
General Description:
M190EG01 V3 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit and a backlight system. The screen format is intended to support SXGA screen and 16.2M colors 8-bits(6-bits+HiFRC). All input signals are LVDS interface compatible.Inverter card of backlight is not included.
Packaging Form:
M190EG01 V3 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit and a backlight system. The screen format is intended to support SXGA screen and 16.2M colors 8-bits(6-bits+HiFRC). All input signals are LVDS interface compatible.Inverter card of backlight is not included.
M190EG01 V3 is designed for a display unit of personal computer.
Packaging Form:
Amount per Box:6pcs
Box Size: 476*274*413 mm(L*W*H)
Box Gross Weight: 17.0kgs
Payment Terms: 100% in Advance
